The CGT-2000 detects even the subtle changes in visual function that would be missed by visual acuity tests.
While monocular testing provides assessment of each eye, it does not reflect how well patients actually see objects in everyday life. As the CGT-2000 can test patients with both eyes open, it provides assessment of their visual function close to real-world conditions.
Test distance can now be selected from the following four settings: 30cm, 60cm, 1m, or 5m, allowing measurement of contrast sensitivity at a near, intermediate or far point. This will provide detailed assessment of patient’s ‘quality of vision’ for more precise diagnosis.
This function is also useful in measuring contrast sensitivity in patients with multifocal intraocular lens.
Testing can now be done under various light conditions: day, twilight, night, or examiner specified.
This will provide assessment of patient’s functional vision under conditions close to their everyday environment.

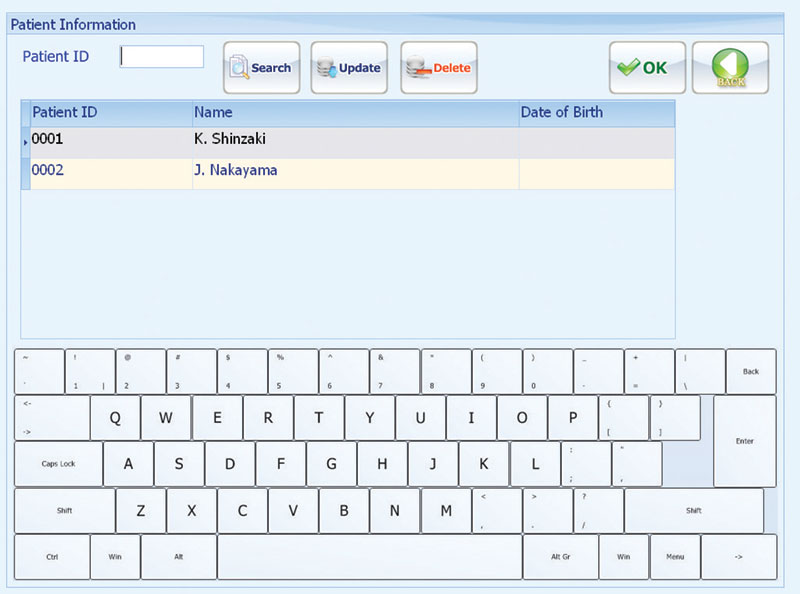

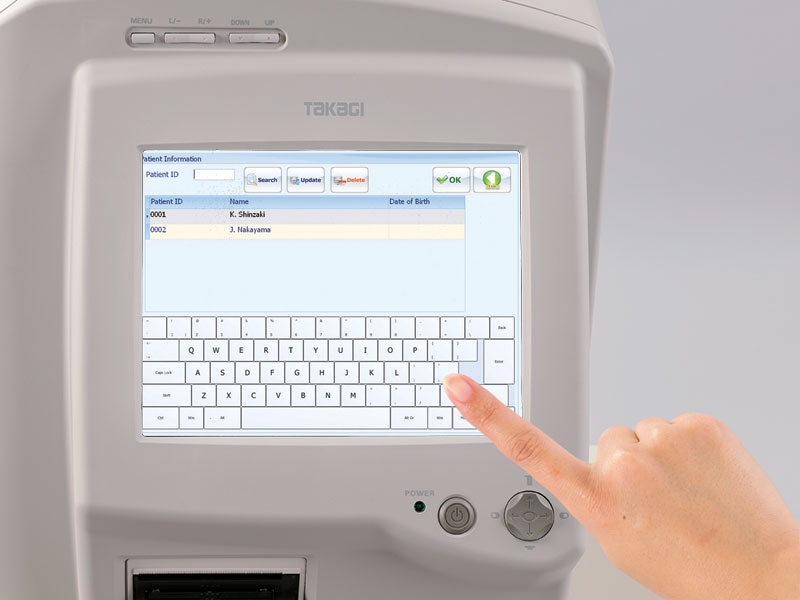

By simply entering a patient ID and a date of birth (or age group), the patient’s data will be stored in the device.

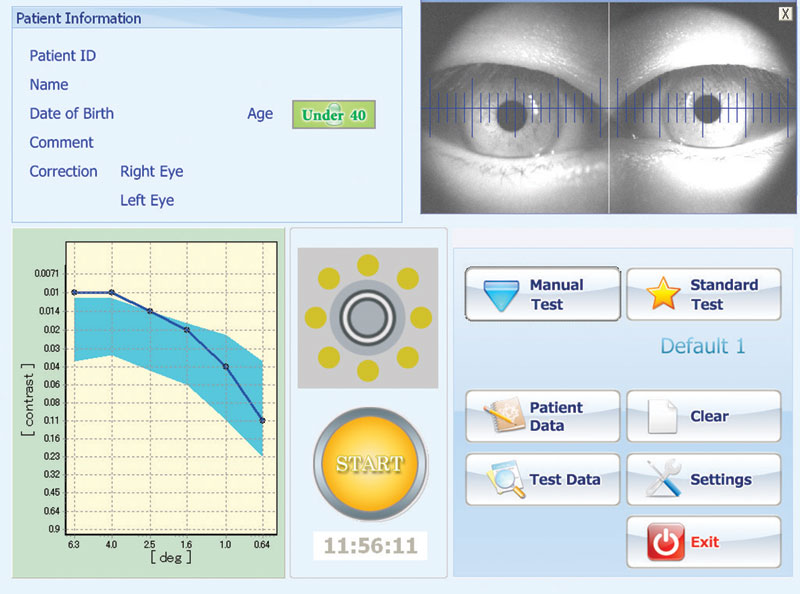

Selected sets of data are instantly converted into graphs, contributing to ease of examination and diagnosis including for pre-/post-cataract surgery comparisons and post-refractive surgery follow-up observations.
Testing can now be performed as you monitor patient’s pupils, which improves test quality, facilitating more precise diagnosis and examinations.

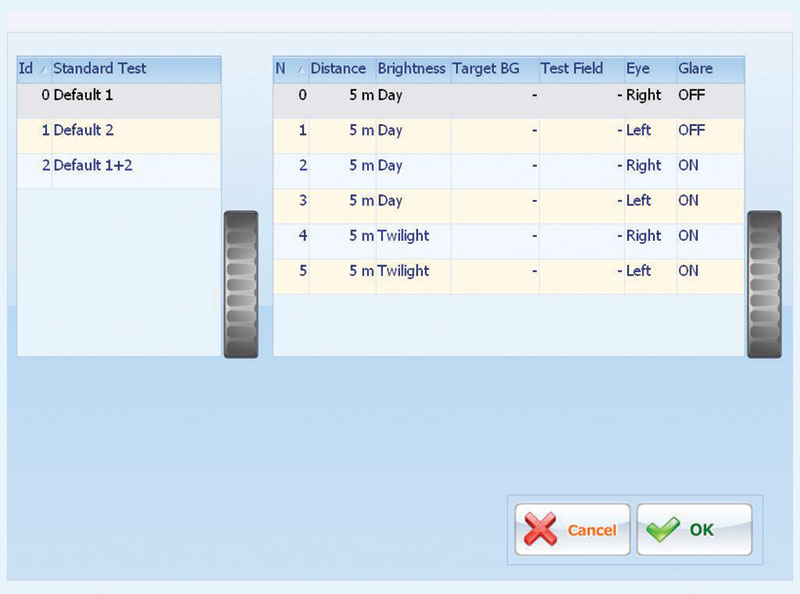

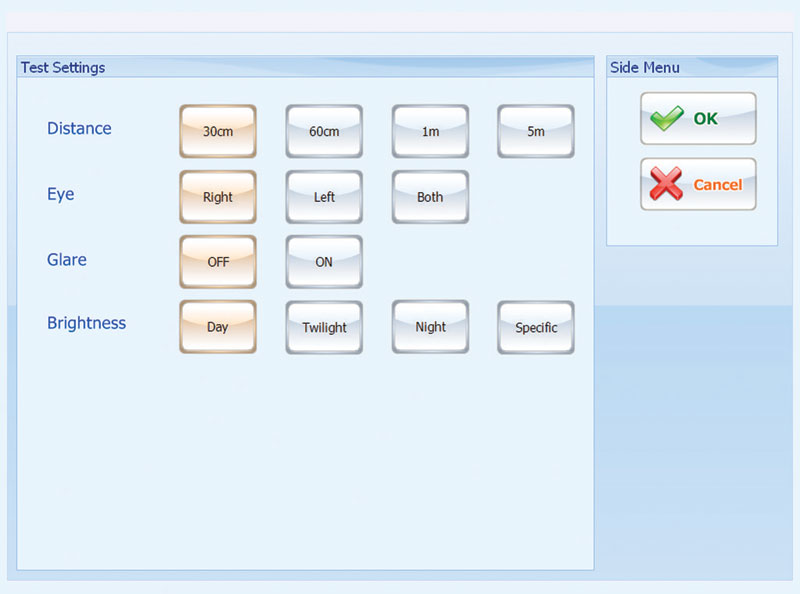

Test items can be customized to suit each practice or hospital. This can be done with ease as once entered, the test setting will be stored in the instrument’s internal memory; there is no need to repeat this procedure.
Multiple test settings to suite a number of specific conditions and cases can be stored.

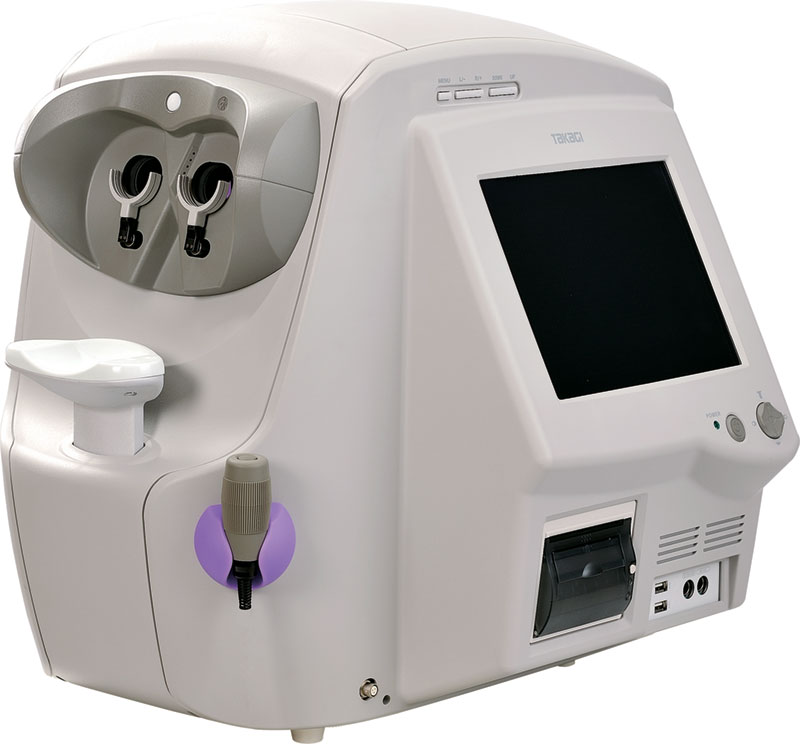

The testing process, including start and end, can be performed by touching the 10.4” screen. On-screen buttons are arranged in a user-intuitive way, facilitating ease of operation. The CGT-2000 is designed to deliver stress-free testing to the examiner.

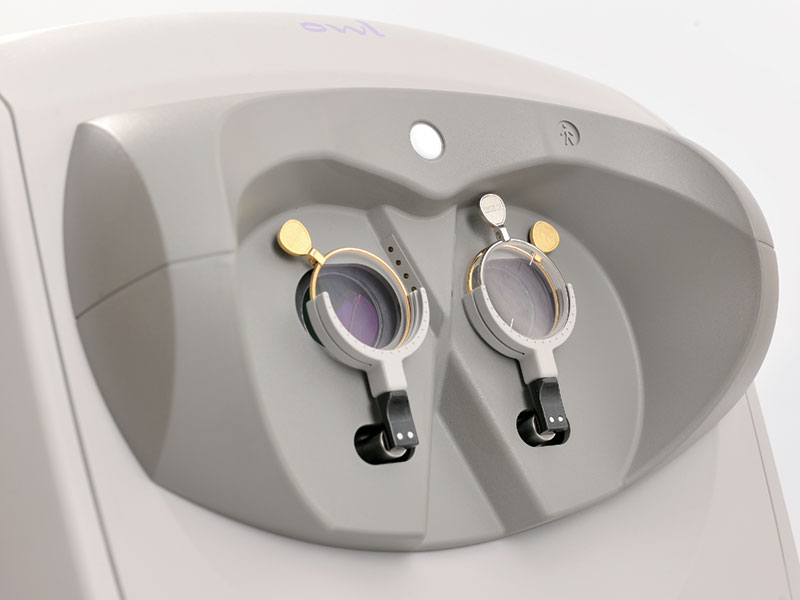

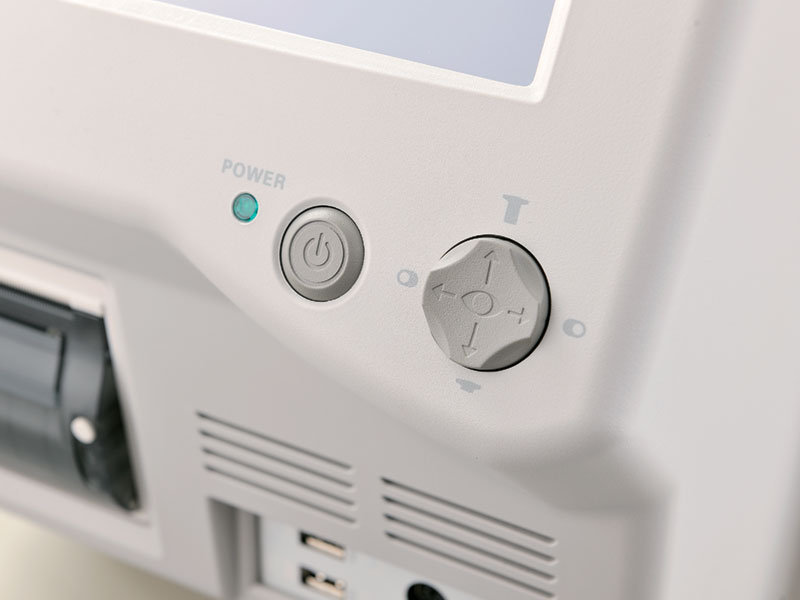

The chinrest and the interpupillary distance can be adjusted smoothly with the controls placed on the examiner’s side of the instrument.

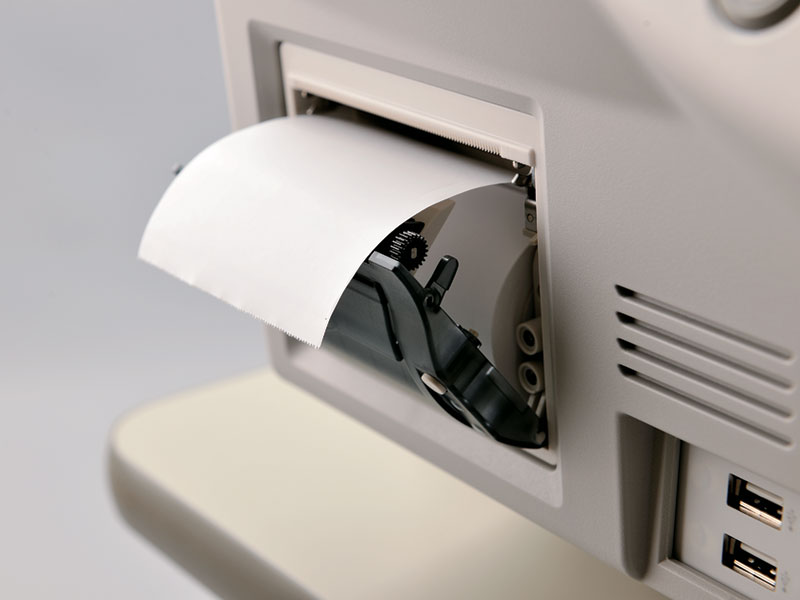

With the new “drop-in” paper loading system, all the examiner has to do is drop in a paper roll, and close the cover. No cumbersome paper feeding or threading through a slot is involved, reducing the examiner’s burden.

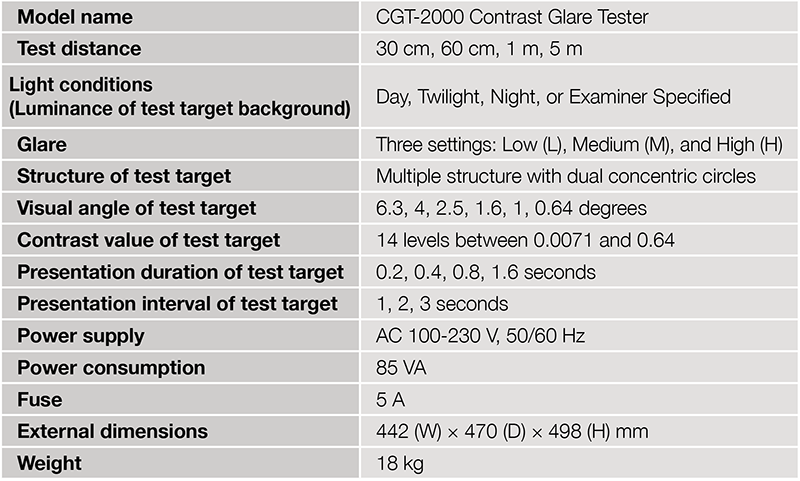

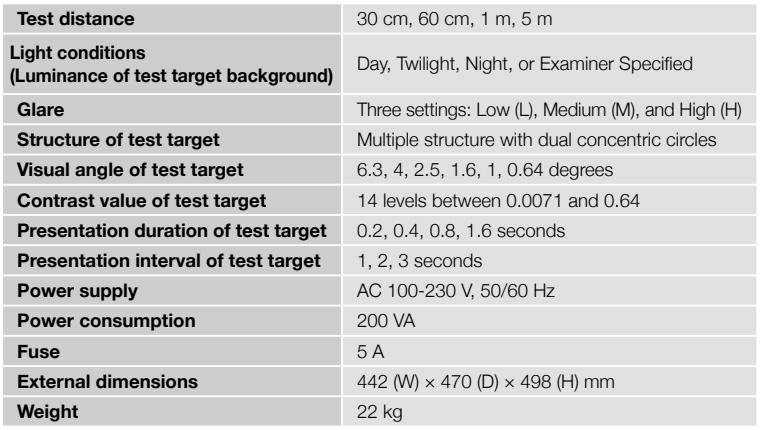

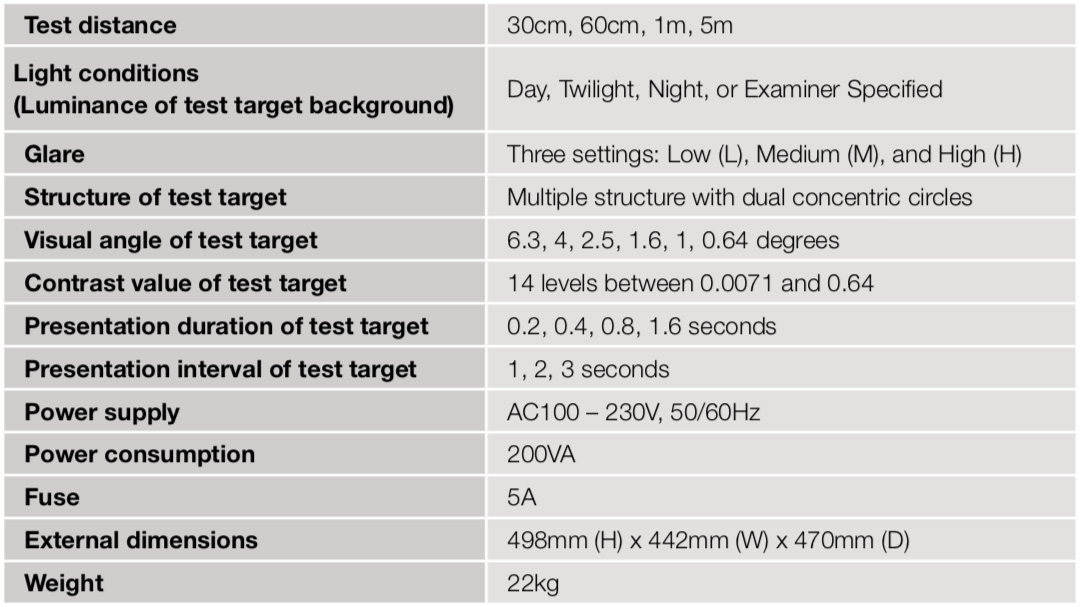

|Test Distance||30cm, 60cm, 1m, 5m|
|Light Conditions (Luminance of Test Target Background)||Day, Twilight, Night, or Examiner Specified|
|Glare||Three settings: Low (L), Medium (M), and High (H)|
|Structure of Test Target||Multiple structure with dual concentric circles|
|Visual Angle of Test Target||6.3, 4, 2.5, 1.6, 1, 0.64 degrees|
|Contrast Value of Test Target||14 levels between 0.0071 and 0.64|
|Presentation Duration of Test Target||0.2, 0.4, 0.8, 1.6 seconds|
|Presentation Interval of Test Target||1, 2, 3 seconds|
|Power Supply||AC100 – 230V, 50/60Hz|

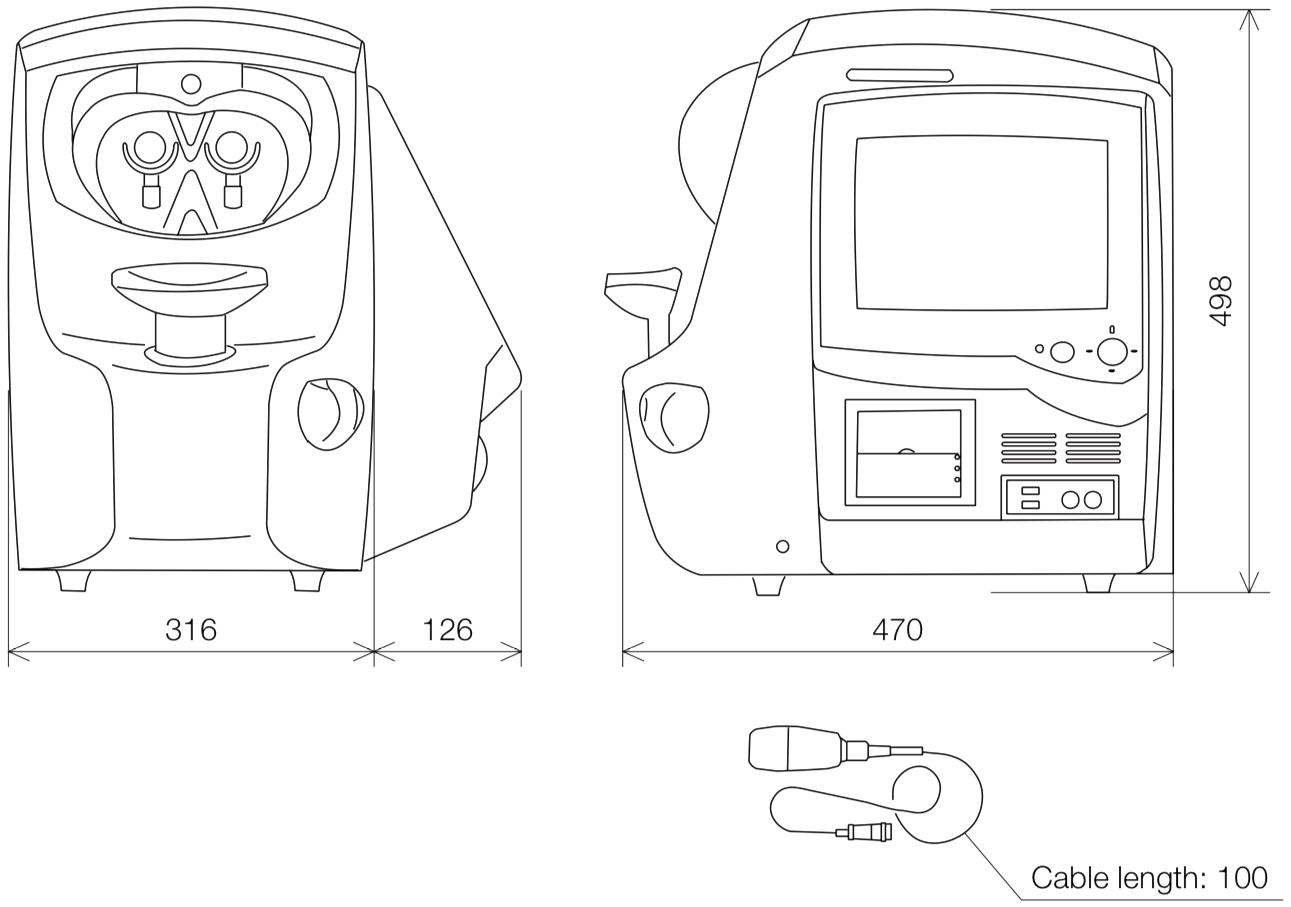

|External Dimensions||498mm (H) x 442mm (W) x 470mm (D)|
Testing the degree of visual disturbance from glare
The degree of visual disturbance from glare can be assessed by using glare lamps during contrast sensitivity testing.
