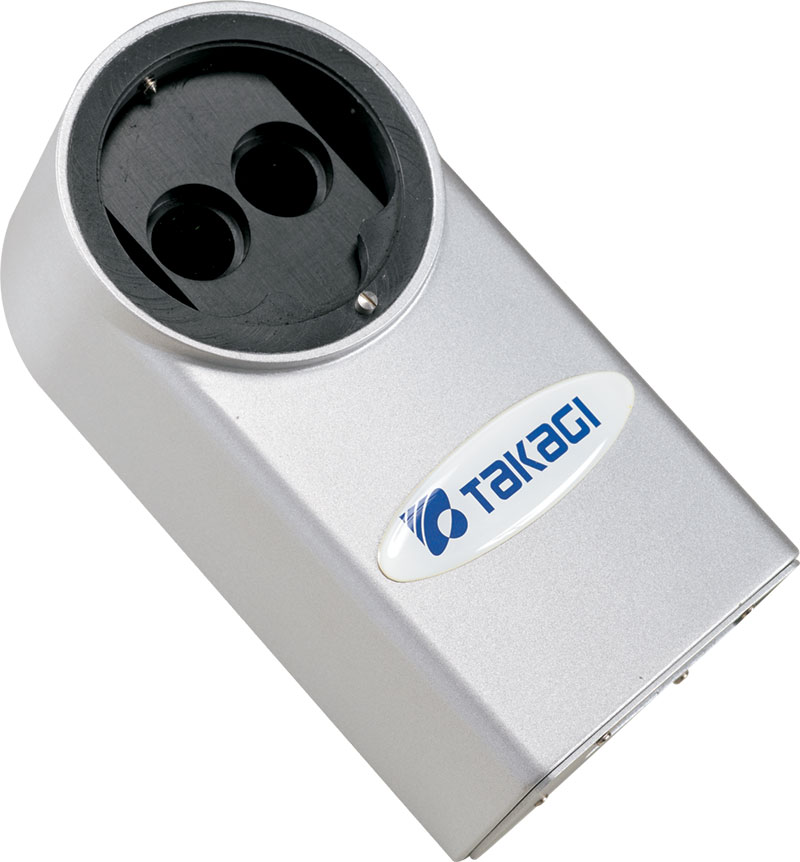

Use of Ultra High Resolution 10.7 Mega Pixel Camera with 3856 x 2764 picture size, delivering 7.4 times higher-resolution compared to the previous digital camera of TD-1plus.
By changing to the new USB 3.0 interface, data transfer speed is now approximately 6.4 times faster than that of the previous IEEE1394b fire-wire interface. Stress-free high-resolution live images are made possible with a high frame rate of 28 fps.
User friendly software with patient database, full image editing facility, and DICOM compatibility.

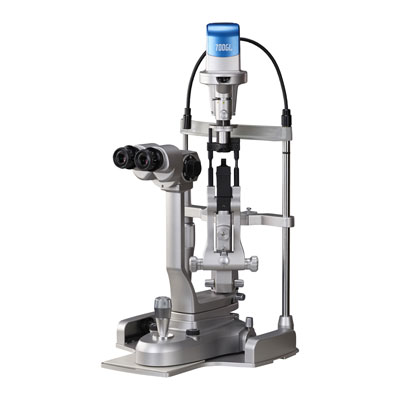

Slitlamp models compatible with TD-10 types
|Compatible models||Type GZL||700GL, 2ZL, 4ZL|

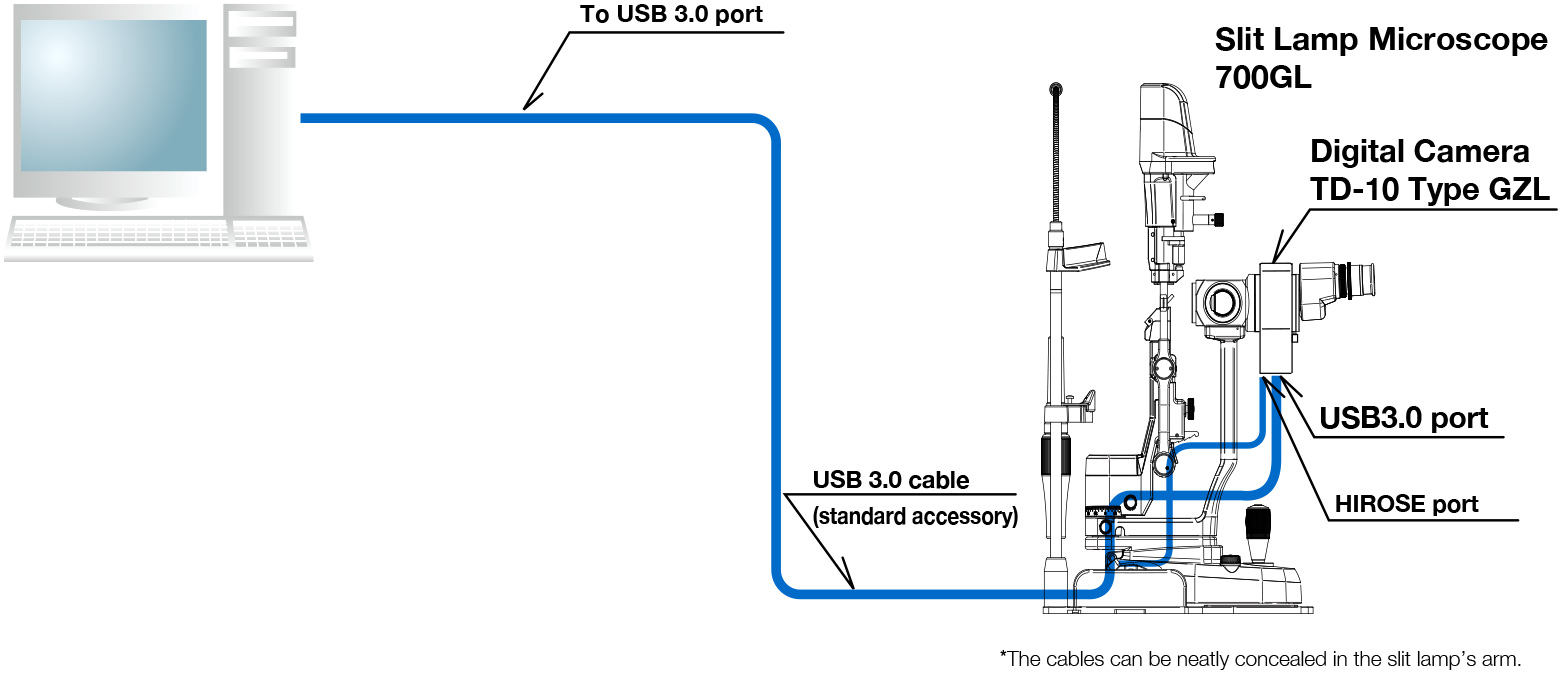

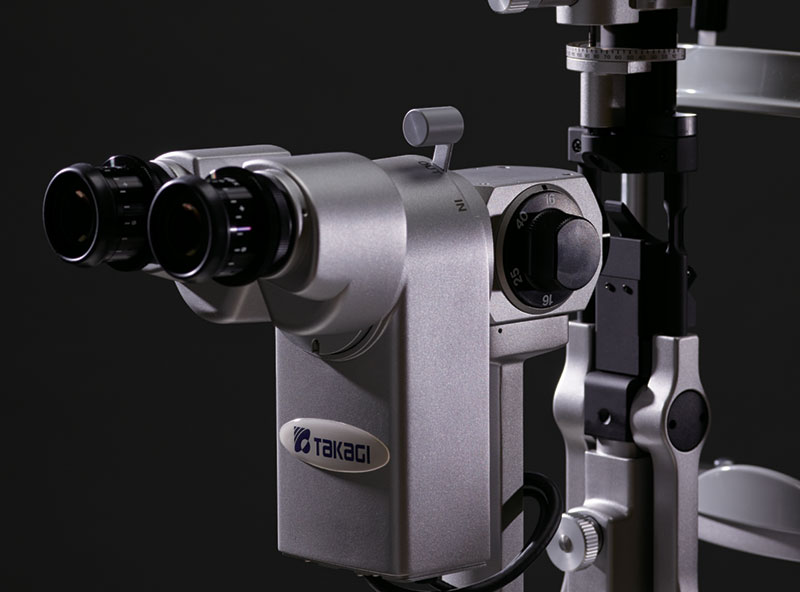

In combination with our LED slit lamps minimum cables for TD-10 are exposed as they can be quickly and neatly concealed in the slit lamp’s arm.
High-contrast images are easily obtained by using the built-in yellow filter for corneal fluorescein observation. In conjunction with our slit lamp’s cobalt blue filter even higher-contrast images can be achieved.

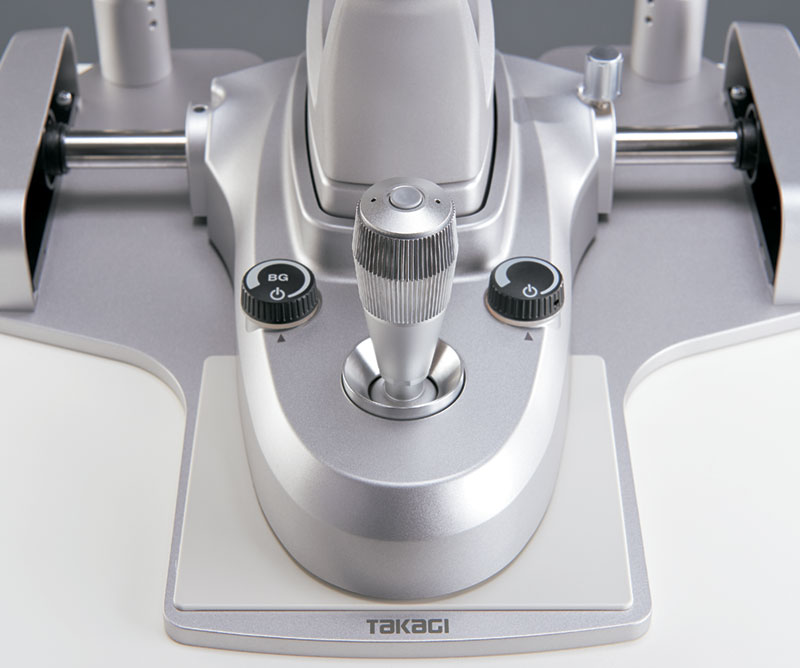

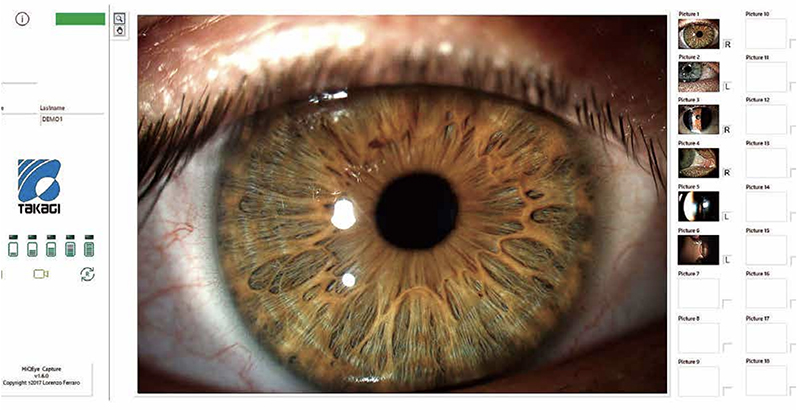

In combination with our supplied trigger cable, still images can be captured instantly and conveniently by pressing the joystick button of the slit lamp. Captured images can be displayed as thumbnail images in the lower part of the screen for evaluation.
The conventional image filing software & patient database have been further upgraded for more ease of use and intuitive handling by reviewing each icon while maintaining the convenient functionality.
Setting of the digital camera can be changed and saved easily with six types of scene files according to the eye condition and image type required. Use our pre-saved recommended settings or simply adjust each pre-set to your own desired level for very fast and convenient high quality image acquisition.
A left or right eye can be automatically detected by moving the joystick to the right and left and saved with each captured image.

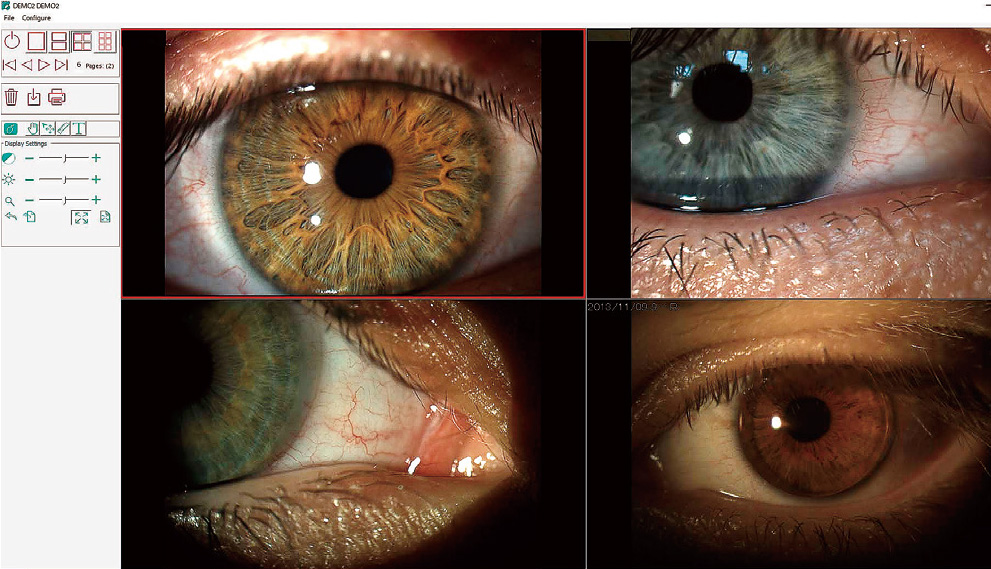

The newly captured images and the images taken in past examinations can be displayed on the same screen. Up to six images can be displayed and compared at once.
In combination with our background illumination device, a more comprehensive explanation is made possible to the patient.
* Background illumination built-in as standard with 700GL and 4ZL models

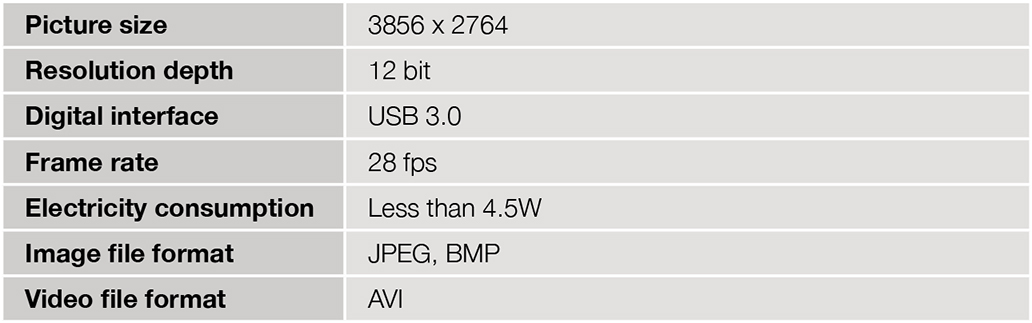

|Picture size||3856 x 2764|
|Resolution depth||12 bit|
|Digital interface||USB 3.0|
|Frame rate||28 fps|
|Electricity consumption||Less than 4.5W|

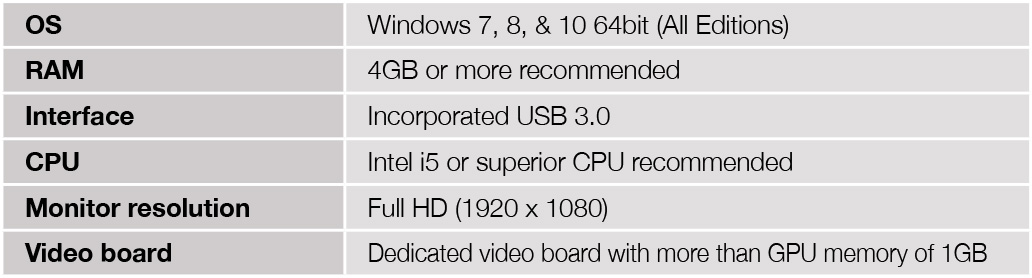

|OS||Windows 7, 8 & 10 64 bit (All Editions)|
|RAM||4GB or more recommended|
|CPU||Intel i5 or superior CPU recommended|
|Monitor resolution||Full HD (1920 x 1080)|
|Video board||Dedicated video board with more than GPU memory of 1GB|
