DIS1 Digital Imaging System

All-in-One CMOS Full HD Microscope Imaging System providing a Sharp, High-Definition Live View

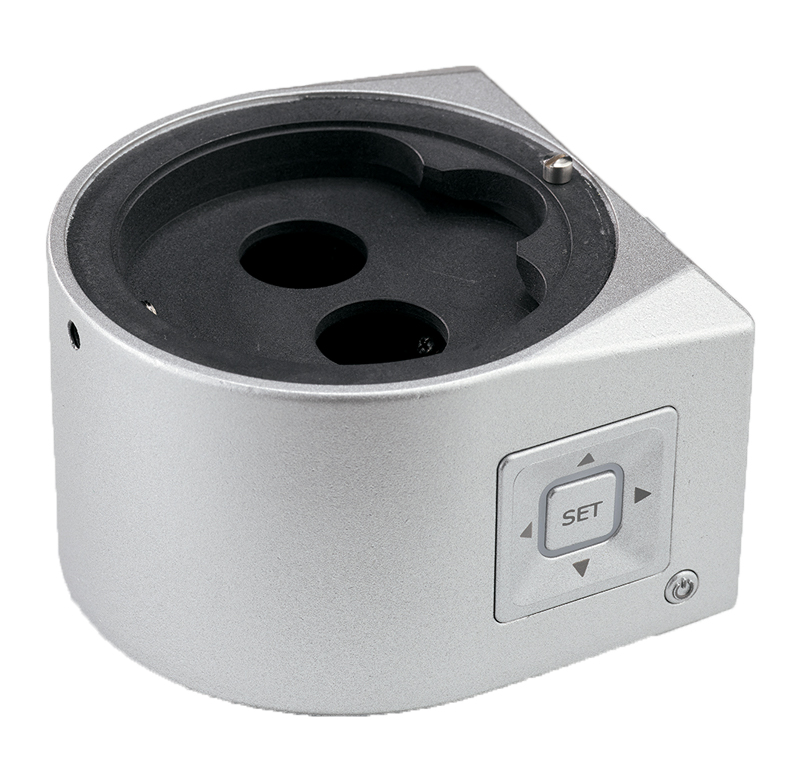

Compact High Definition Digital Imaging System for Operating Microscopes

A powerful compact beam splitter with integrated single CMOS Full HD color sensor for operating microscopes.
The live operating image can be displayed easily on a monitor only by simply connecting the video cable, giving instant live video display at an impressive 30 frames per second.

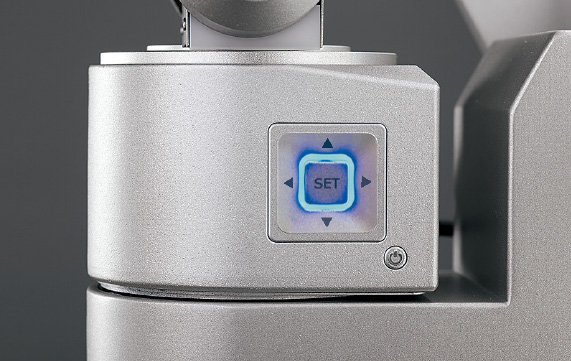

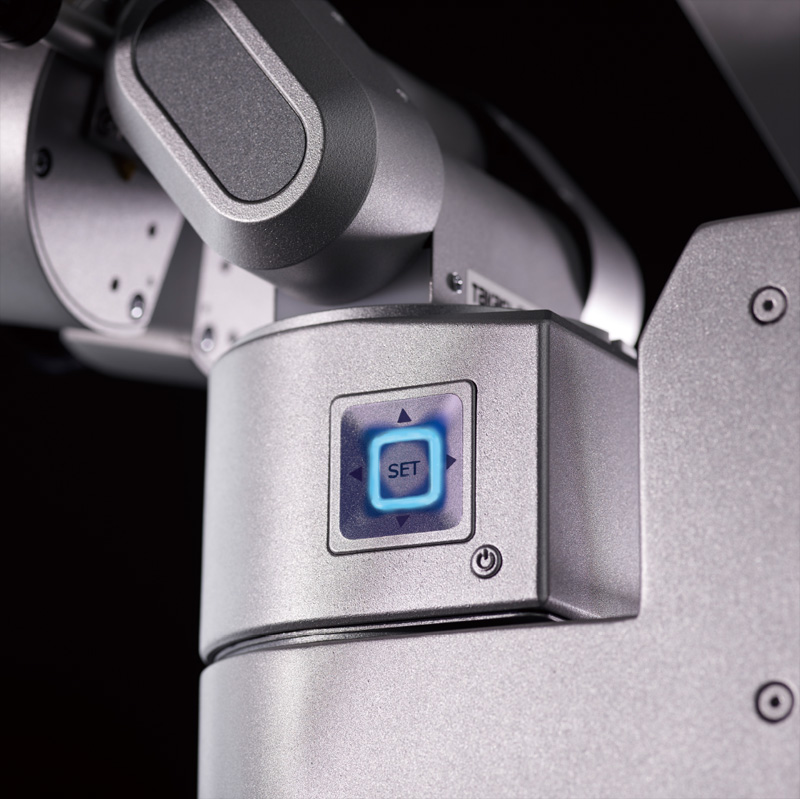

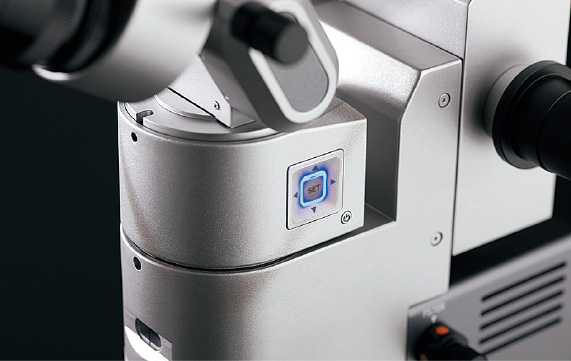

Intuitive Camera Settings by the On- Screen Display Controller

Fingertip operation of the OSD (On-Screen Display) via the control keypad located on the side of the main unit for navigating and adjusting various camera settings. Camera parameters are easily adjusted by selecting the menu displayed on the monitor, eliminating the need of a separate camera control unit, minimizing external cable exposure from the microscope.

Sharp & Clear Full HD Live Image

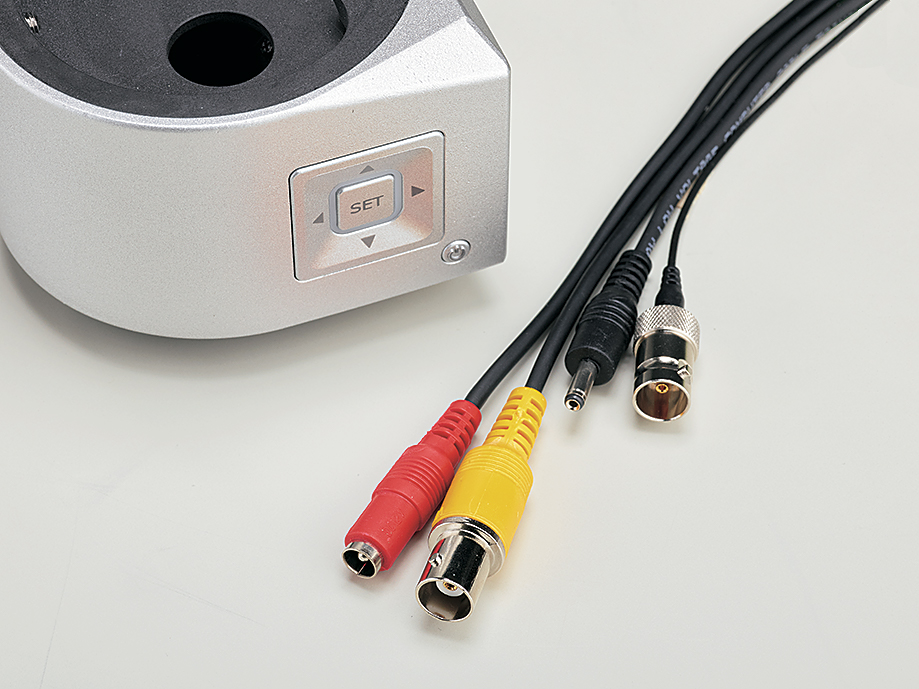

This high-end integrated CMOS sensor supports a full high definition video signal through the BNC connector. A composite video signal connector is also equipped as standard.

Power Supply from the Internal Microscope Board

When used with Takagi LED operating microscopes OM-6, OM-9, and OM-19, power can be supplied from the internal board of the operating microscope.

* For other microscopes, power should be supplied from an outlet using the accessory AC adapter.


Components Supplied as Standard: Main body, HD-SDI cable with BNC connectors (10m), DIS power cable for OM-6, OM-9, and OM-19, DC power extension cable (3m), AC power adapter (12V) with US & EU plugs.

Options: HD-SDI to HDMI converter and HDMI cable

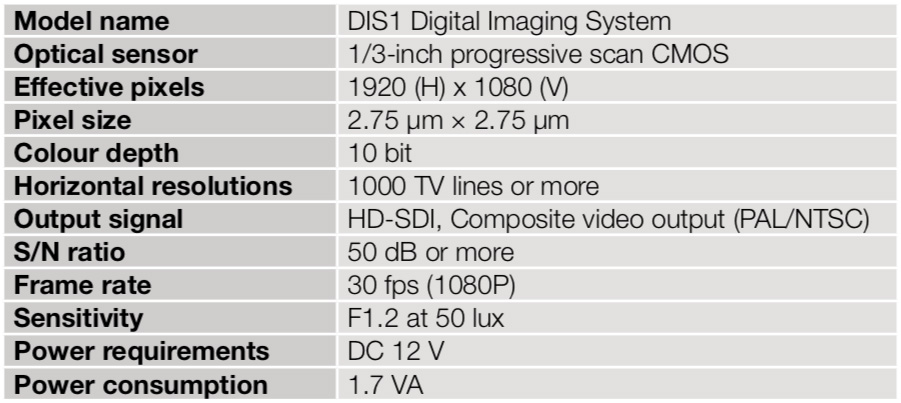

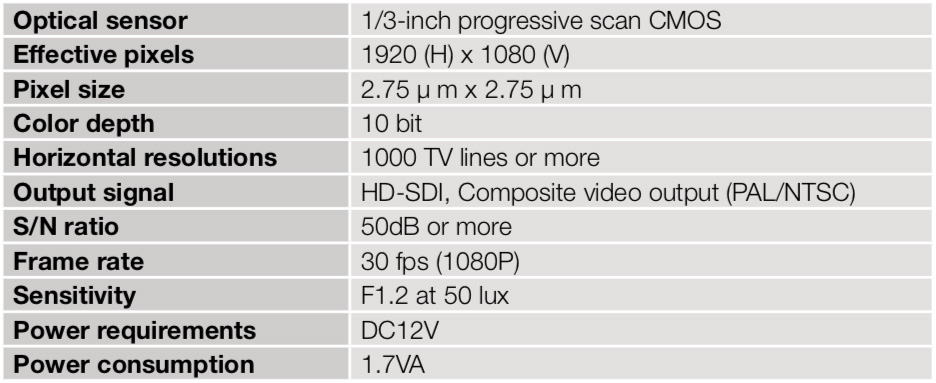

Major Specifications

Optical Sensor 1/3-inch progressive scan CMOS
Effective Pixels 1920 (H) x 1080 (V)
Pixel Size 2.75 μ m x 2.75 μ m
Colour Depth 10bit
Horizontal Resolutions 100 TV lines or more
Output Signal HD-SDI, Composite video output (PAL/NTSC)
S/N Ratio 50 dB or more
Frame Rate 30 fps (1080P)
Sensitivity F1.2 at 50 lux
Power Requirements DC12V
Power Consumption 1.7VA

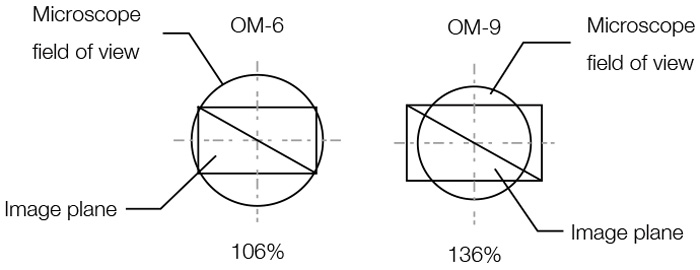

Field of View Rate
