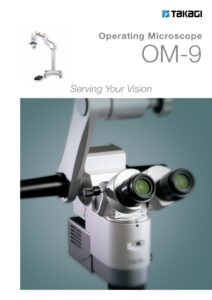

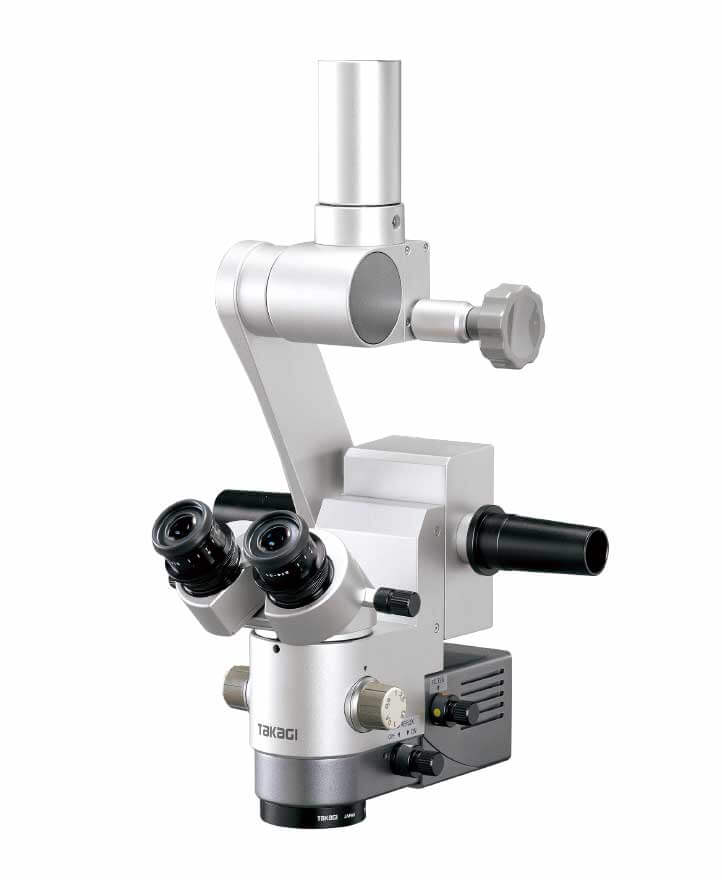

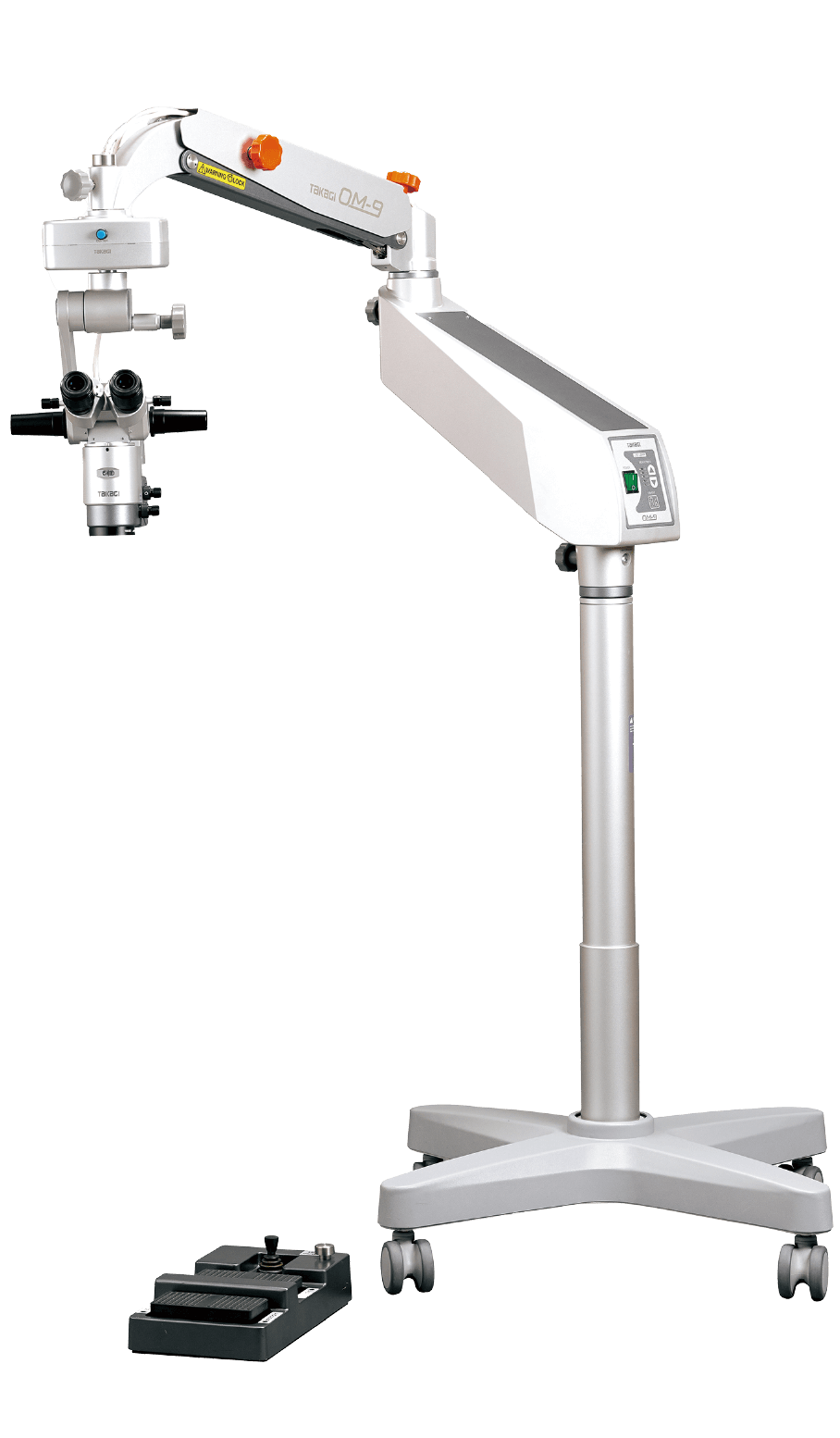

OM-9 Operating Microscope

A Compact High-performance Operating Microscope with LED Illumination

OM-9 is a  Compact High-performance Operating Microscope delivering high efficiency and versatile functionality, complete with high illumination LED light source.

OM-9 is the perfect choice giving complete product satisfaction to the operator, and offering the highest level of patient safety.



OM-9 can be fitted with Oculus BIOM for vitreous surgery.

Features

Design

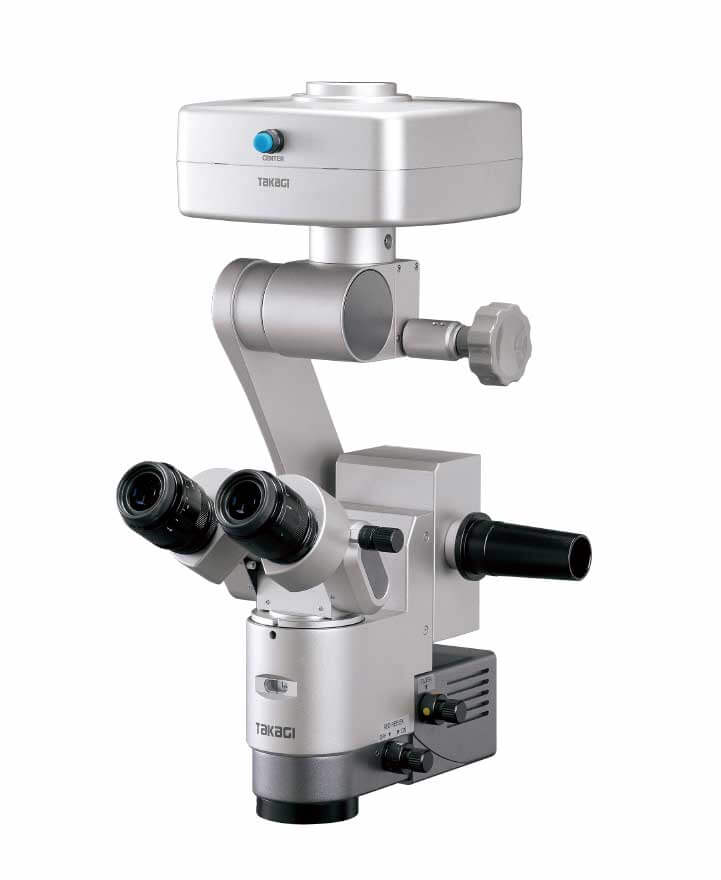

Renewed Design

  • Most cables are concealed minimizing dust attachments and reducing interference between operator and instrument.

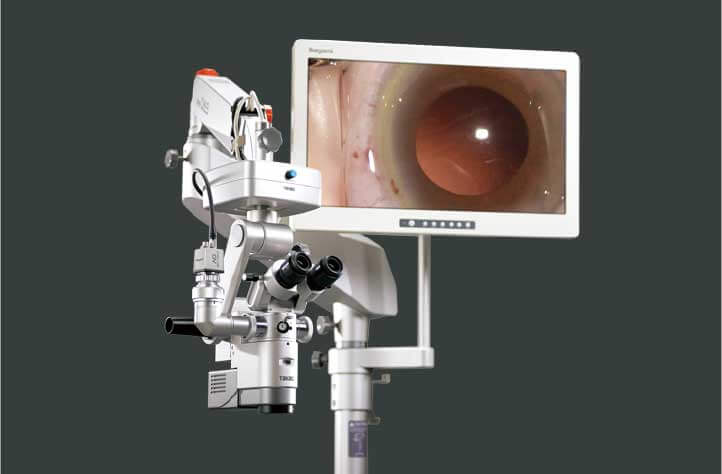

  • Cables for connecting an imaging system can also be concealed, achieving a sleek stylish hygienic design.
  • New product color scheme adds to the overall high quality feeling.

* The image on the monitor is created by inlay. An actual displayed image may look different from it.

LED

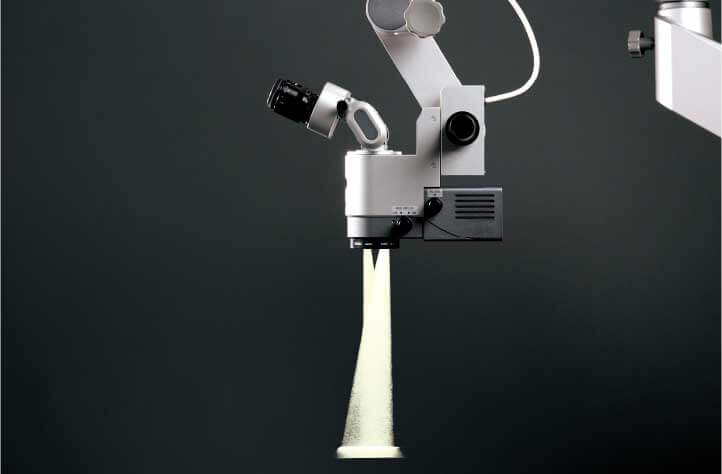

Use of High-luminance LED light source

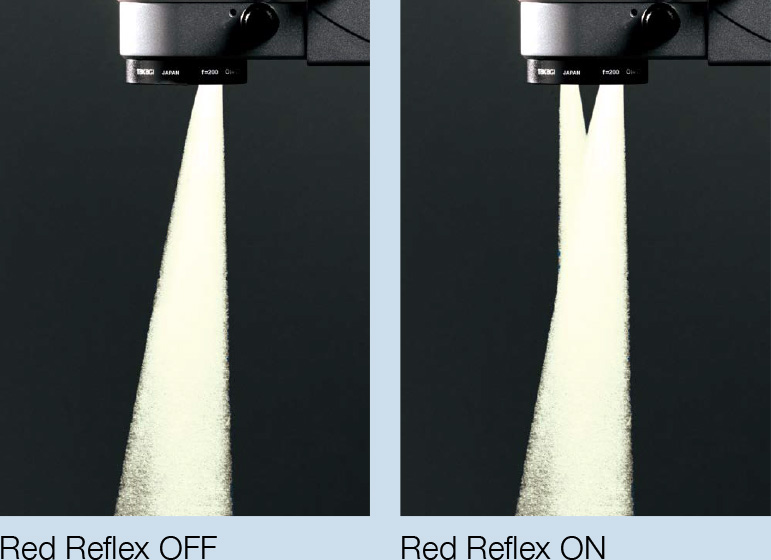

  • New red reflex illumination combined with a high luminance LED gives OM-9 a brighter reflected light from the fundus.
  • Bright and sharp LED having excellent color reproducibility is used for OM-9.

Reduction of the Characteristic Blue Light of LED

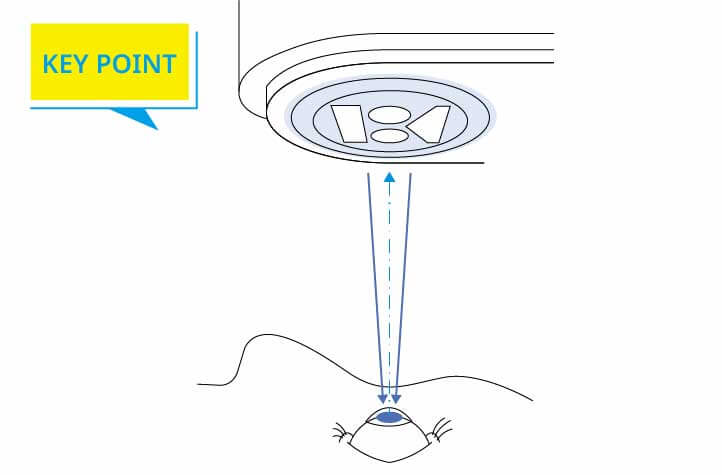

  • The projected light is soft and easy on patient’s eyes by using a new blue correction filter, reducing the peak of the characteristic blue wavelength of LED.

Optical Design

New Optical System

  • New OM-9 optics are suitable for both cataract and vitreoretinal surgery.
  • By adopting a standard objective lens F=200 mm, the OM-9 is fully suited for vitreoretinal surgery. (compatible with a BIOM viewing system)
  • 10x eyepieces bring a wider, brighter & sharper view with a larger depth of focus.*

*Compared to OM-8

Usability

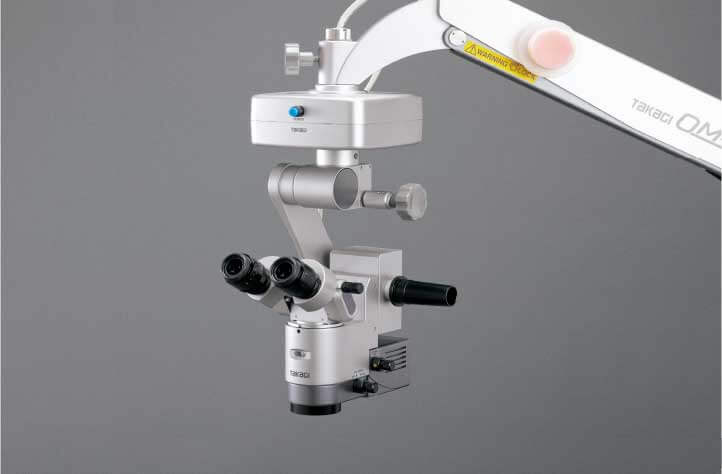

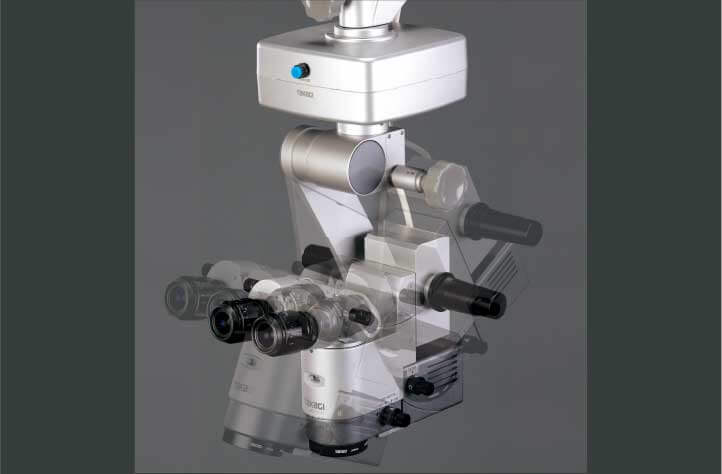

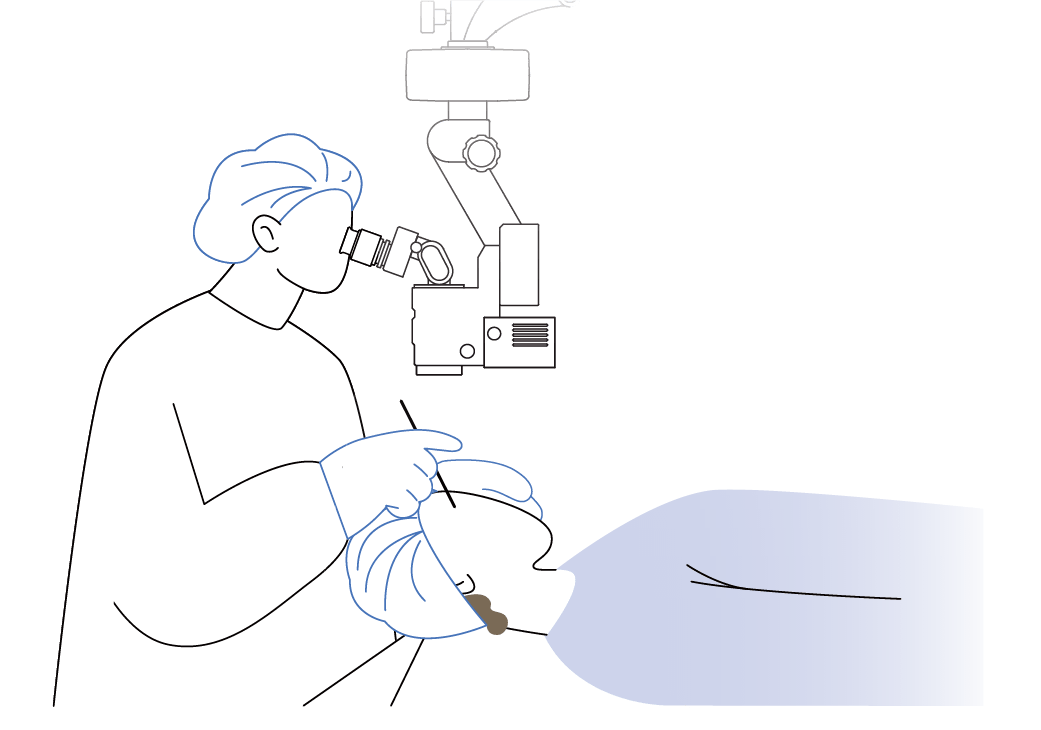

Tiltable Binocular Tubes

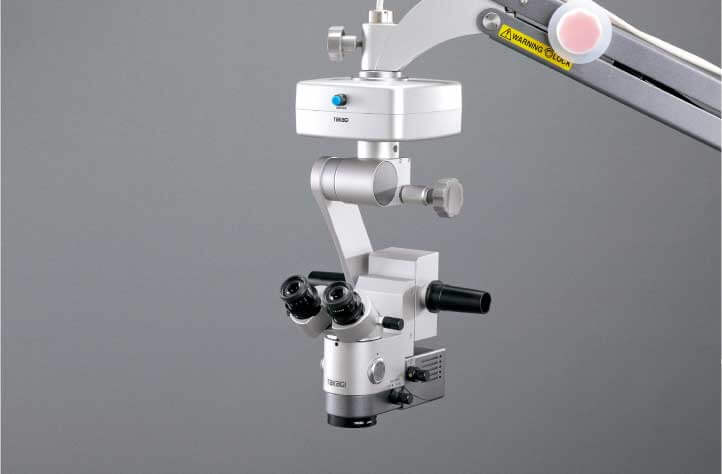

  • Tiltable binocular tubes available, which can incline more than 90° depending on the posture and physique of the operating surgeon.
  • Movable range: 0° (straight) to 90° (inclined)

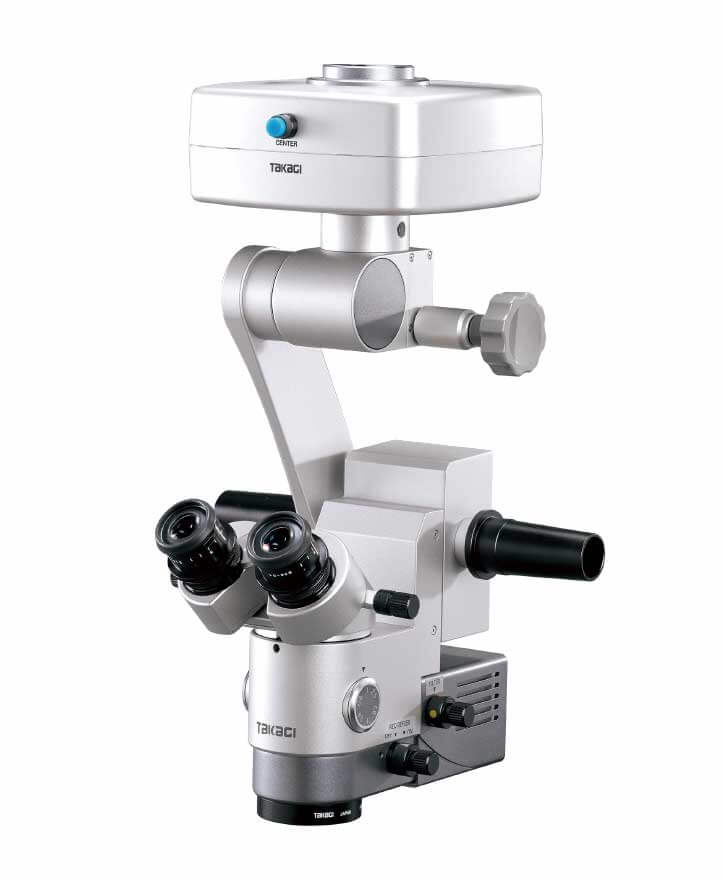

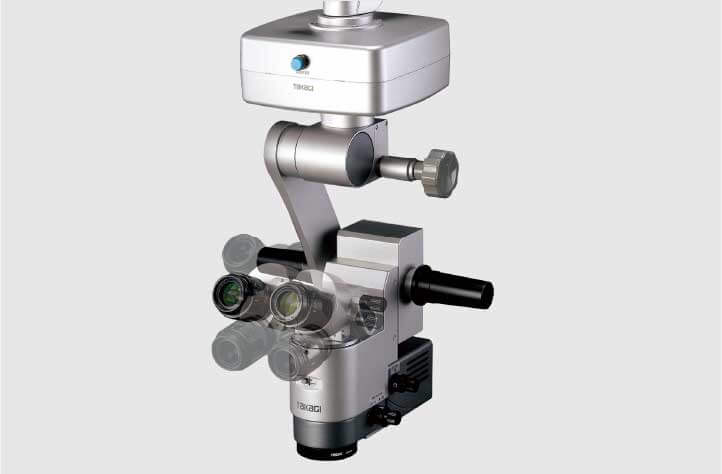

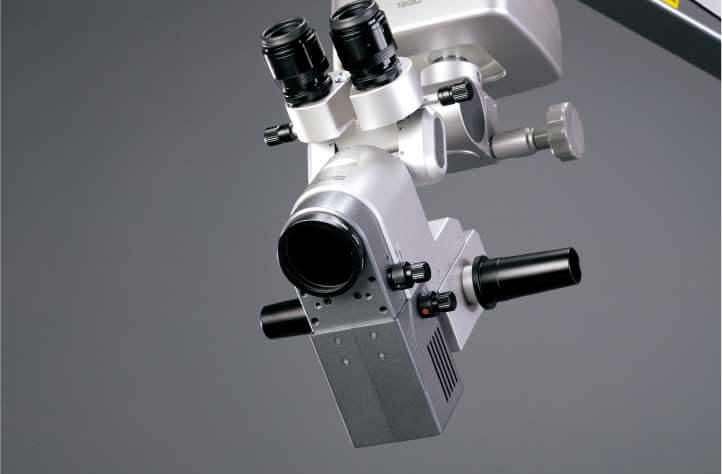

Microscope Tilting Mechanism

  • By adopting the knob interlock system, the microscope tilts back and forth easily, necessary in the application of glaucoma surgery.
    Movable range: around ±30°

Options

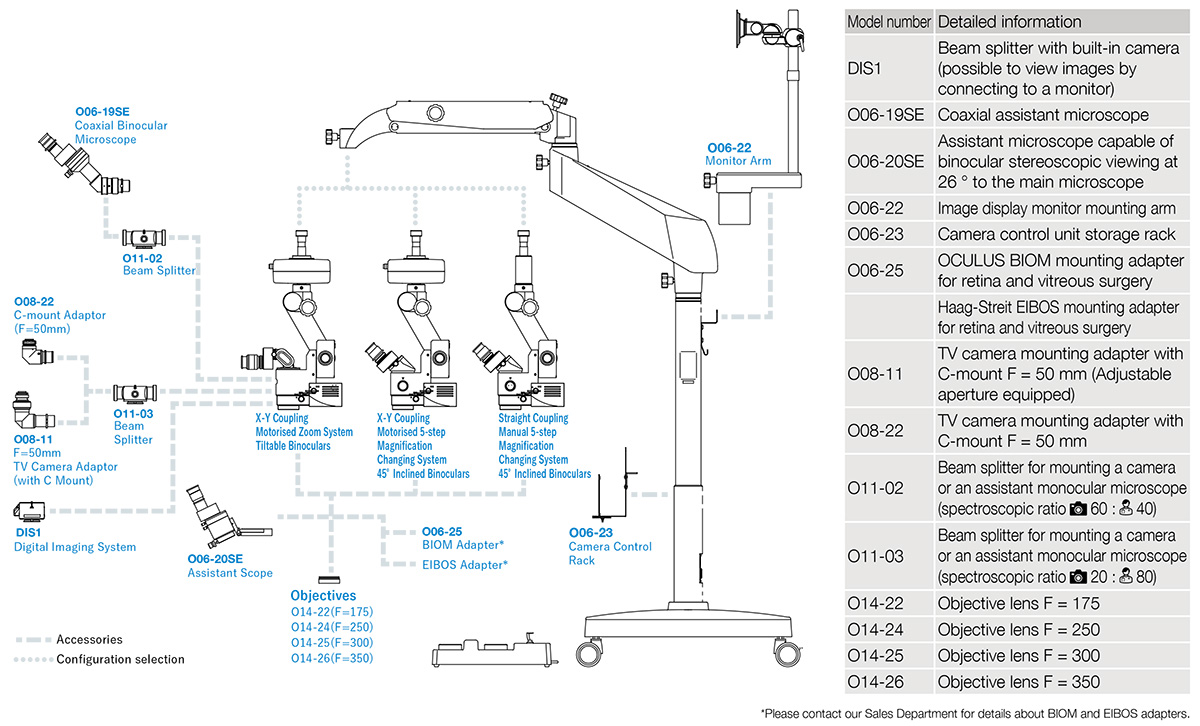

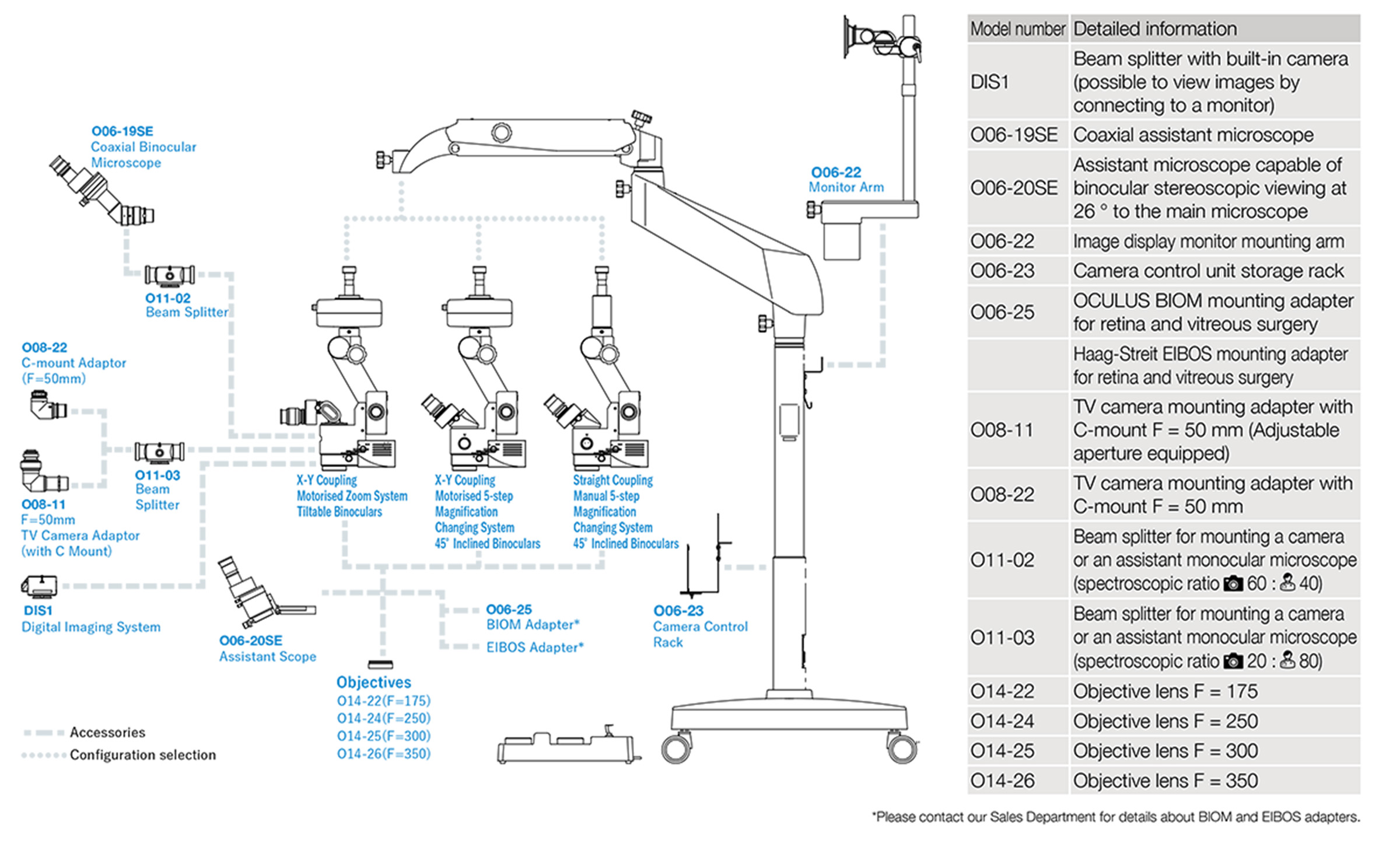

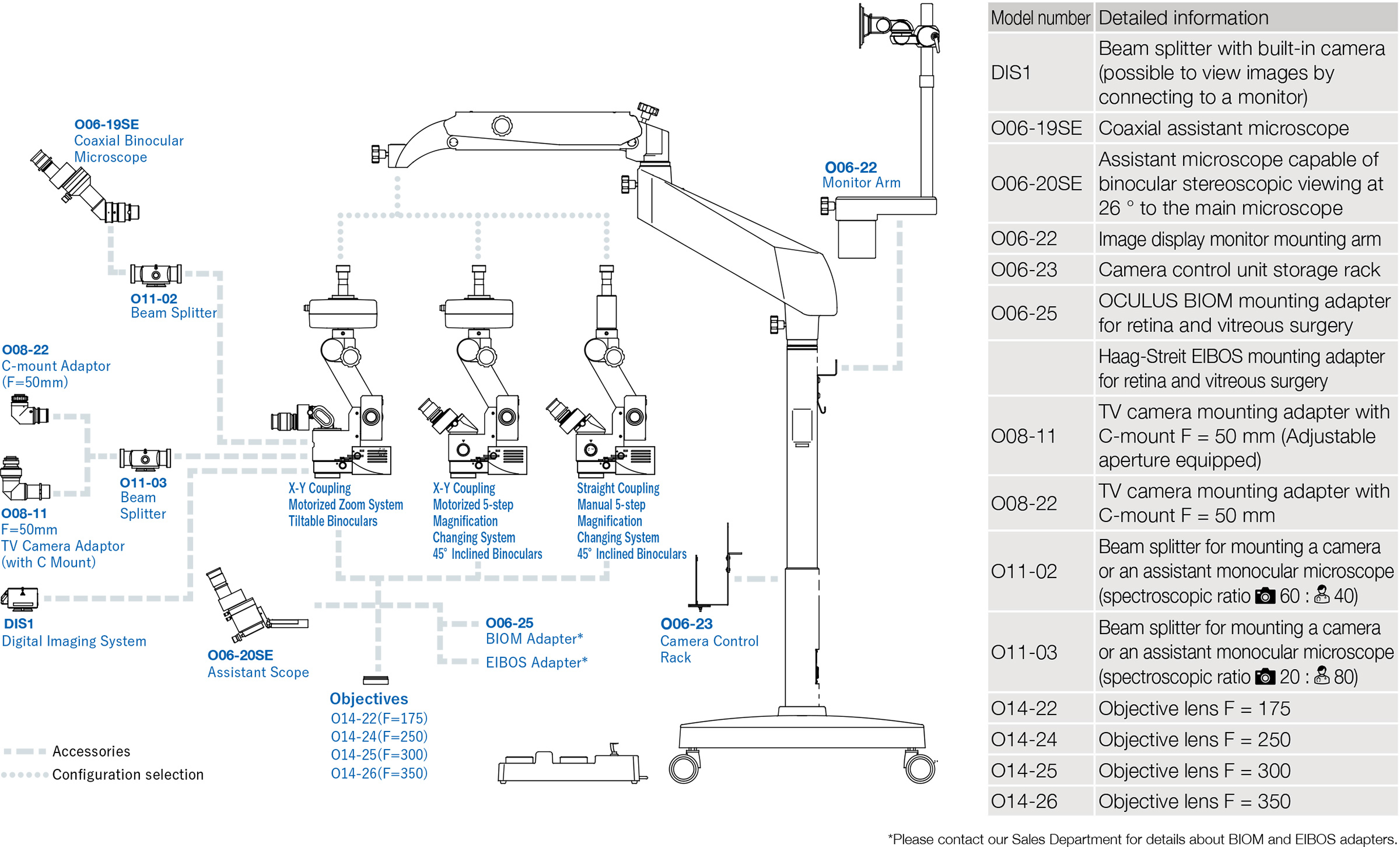

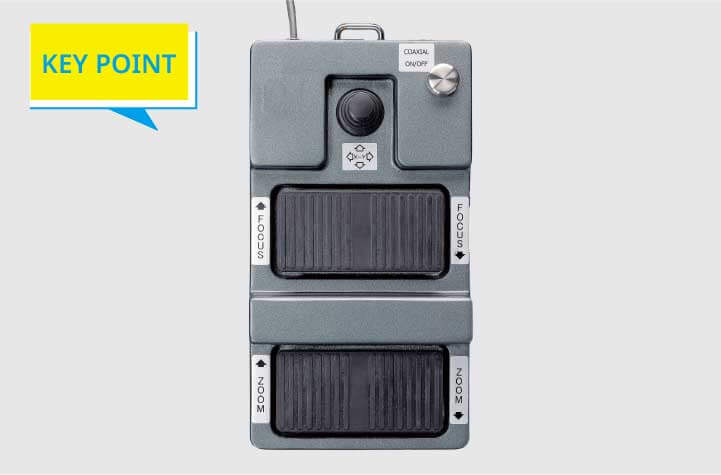

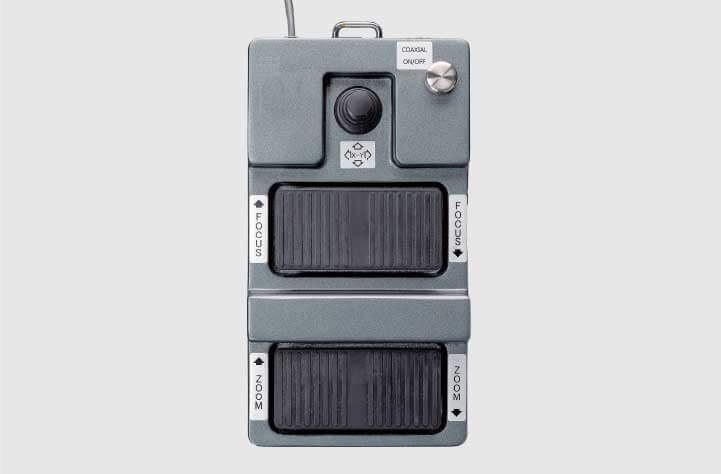

Various options

  • Various options are available.
    For details, please contact our distributor or our Sales Department.

Fundus Observation Devices Adaptations

  • Oculus BIOM and VOLK MERLIN adaptation is available for OM-9.
  • For details, please contact our distributor or our Sales Department.

Microscope Specifications

Motorized Zoom System

  • Motorized zoom microscope, tiltable binocular tubes, X-Y coupling

Motorized 5-step Magnification ChangingSystem

  • Motorized 5-step magnification microscope, 45° inclined binocular tubes, X-Y coupling

Manual 5-step Magnification Changing System

  • Manual 5-step magnification microscope, 45° inclined binocular tubes, straight coupling

Examples of Combinations

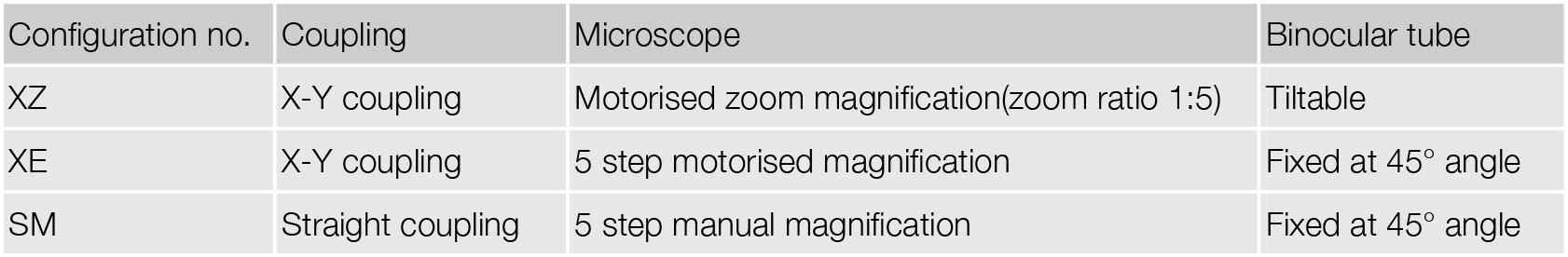

Configuration ID Voltage Coupling Microscope Binoculars
OM9XZ100 AC 100V X-Y Coupling Motorized Zoom System Tiltable Binoculars
OM9XZ120 AC 120V
OM9XZ230 AC 230V
OM9XE100 AC 100V X-Y Coupling Motorized 5-step Magnification Changing System 45° Inclined Binoculars
OM9XE120 AC 120V
OM9XE230 AC 230V
OM9SM100 AC 100V Straight Coupling Manual 5-step Magnification Changing System 45° Inclined Binoculars
OM9SM120 AC 120V
OM9SM230 AC 230V

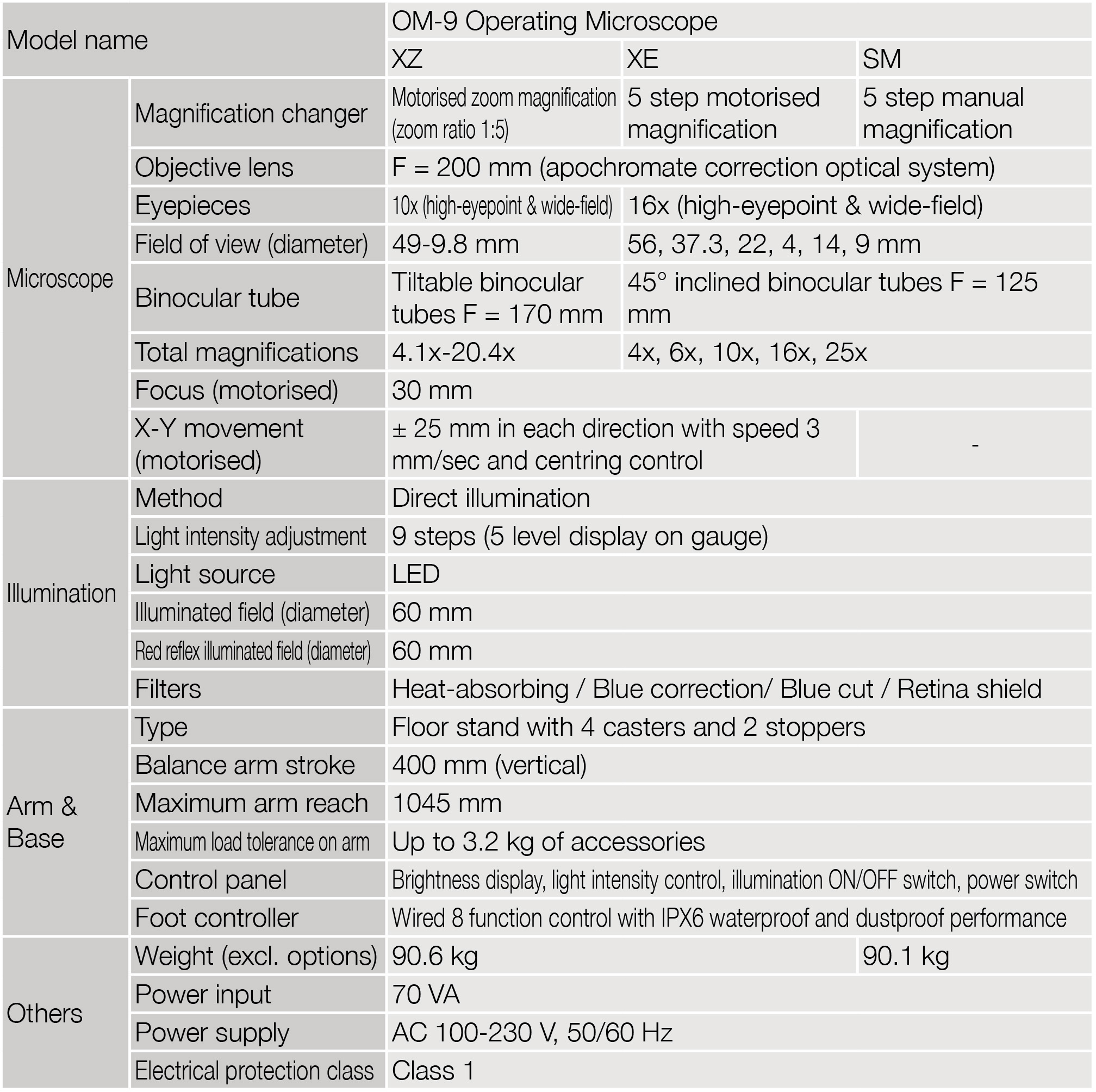

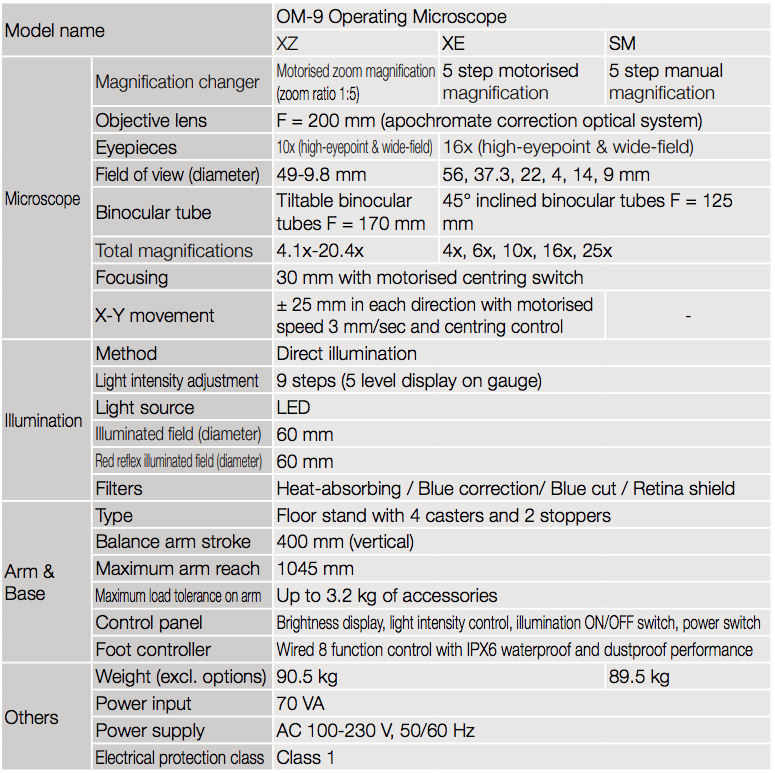

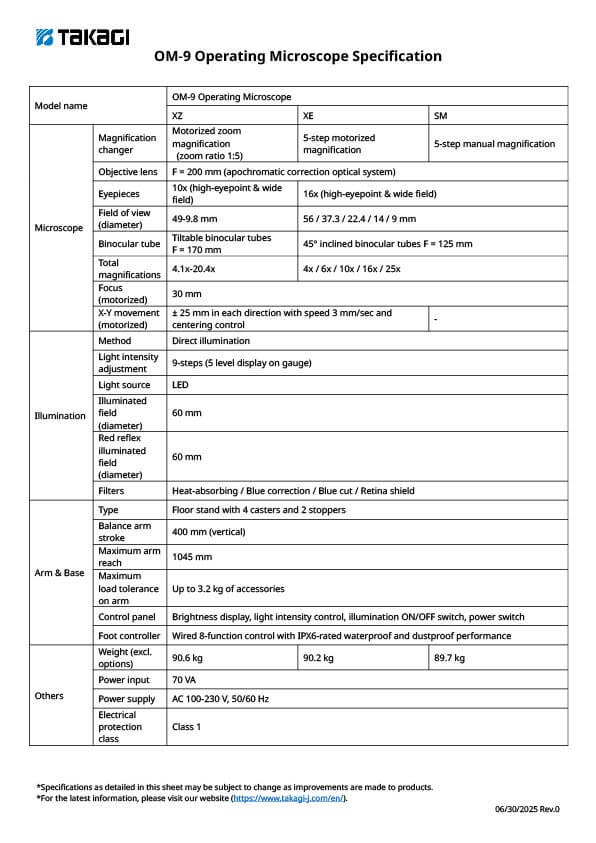

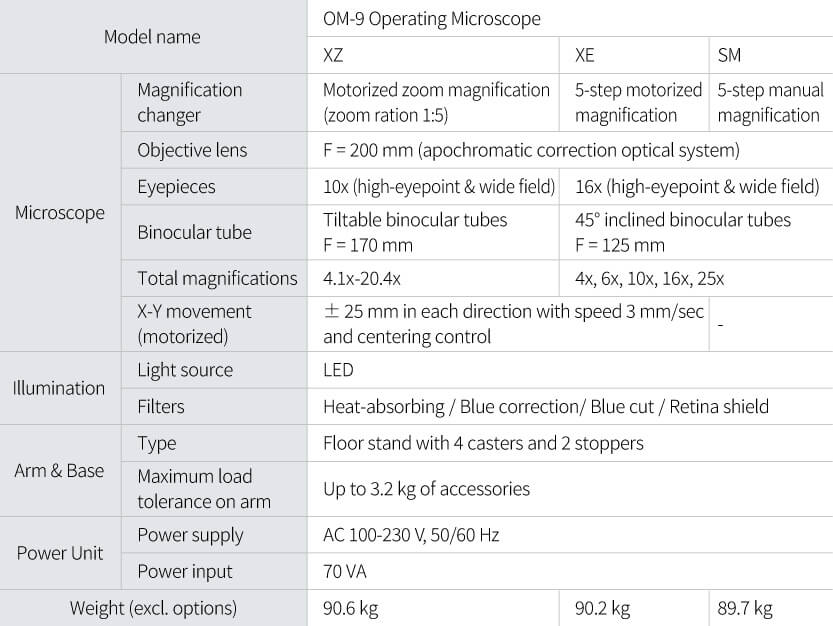

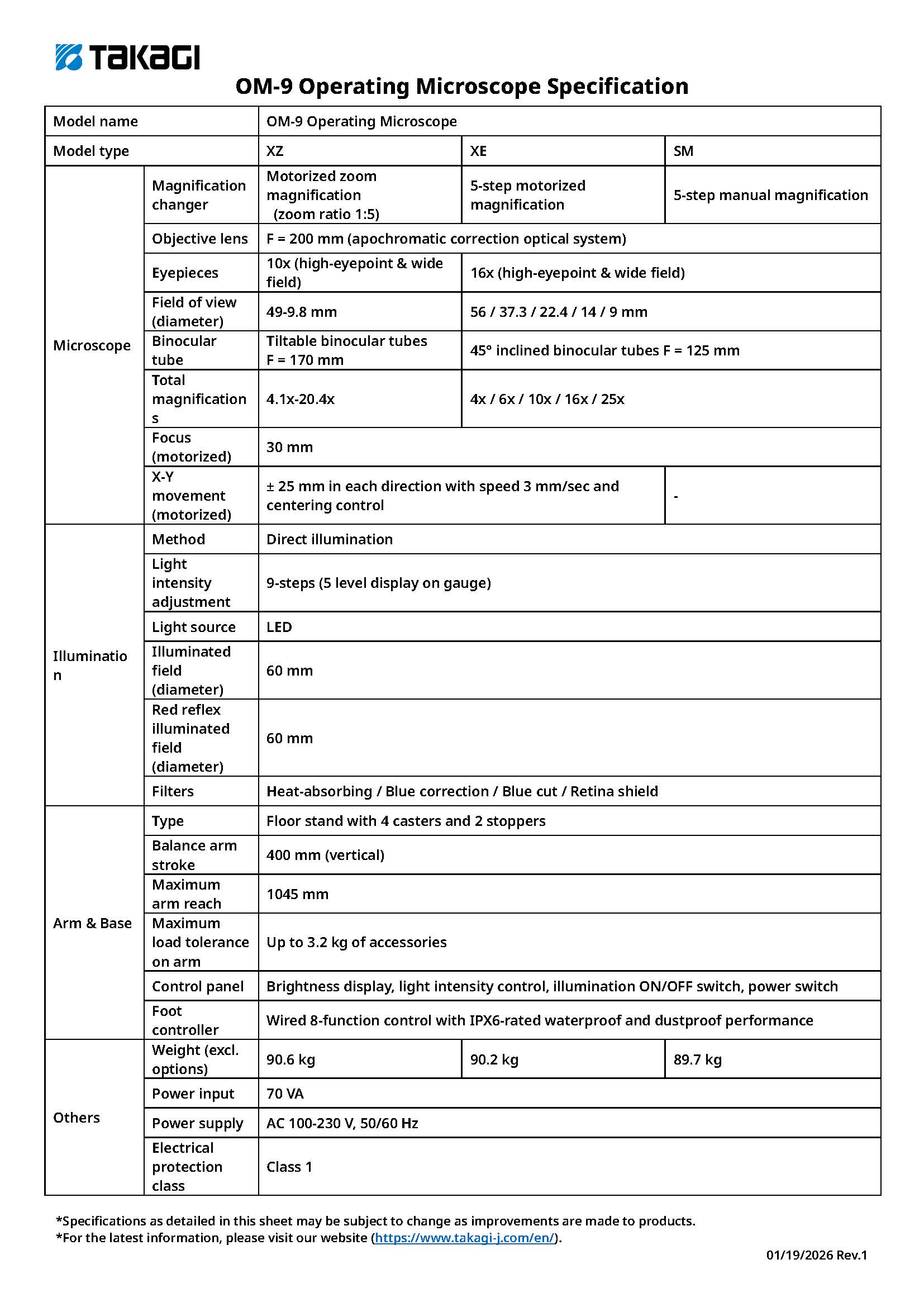

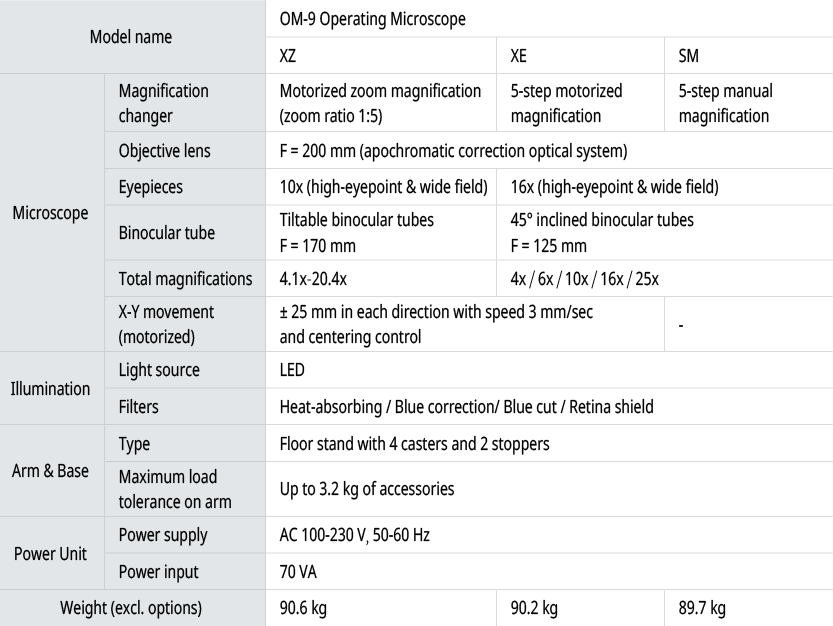

Major Specifications

Microscope Magnification changer Motorized zoom type (zoom ratio 1:5) Motorized 5-step magnification changing type Manual 5-step magnification changing type
Objective F=200mm (apochromatic corrected optics)
Eyepieces 10x (high-eyepoint & wide field) 16x (high-eyepoint & wide field)
Binoculars Tiltable Binocular Tubes F=170mm 45° inclined binocular tubes F=125mm
Total magnifications 4.1x to 20.4x 4x,6x,10x,16x,25x
Real fields of view φ49mm to φ9.8mm φ56,φ37.3,φ22.4,φ14,φ9mm
Focussing stroke 30mm
X-Y movement stroke ±25mm in each direction (with centering function)
Illumination System Direct illumination
Light source LED
Field of illumination φ60mm
Illumination control 9 steps
Filters Heat-absorbing, Blue correction filter,Yellow filter, Retinal protection
Arm, base Mount Floor stand
Maximum arm extension 1045mm
Arm vertical stroke 400mm
Base size 640mm × 640mm
Other Weight 90kg
Power consumption 70VA
Power supply AC120V, AC230V ; 50/60Hz

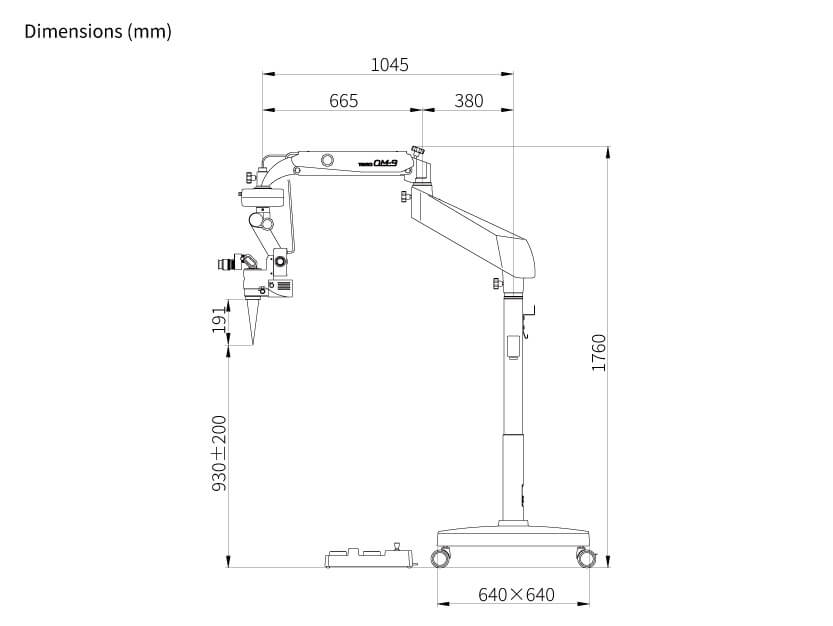

Dimensions
