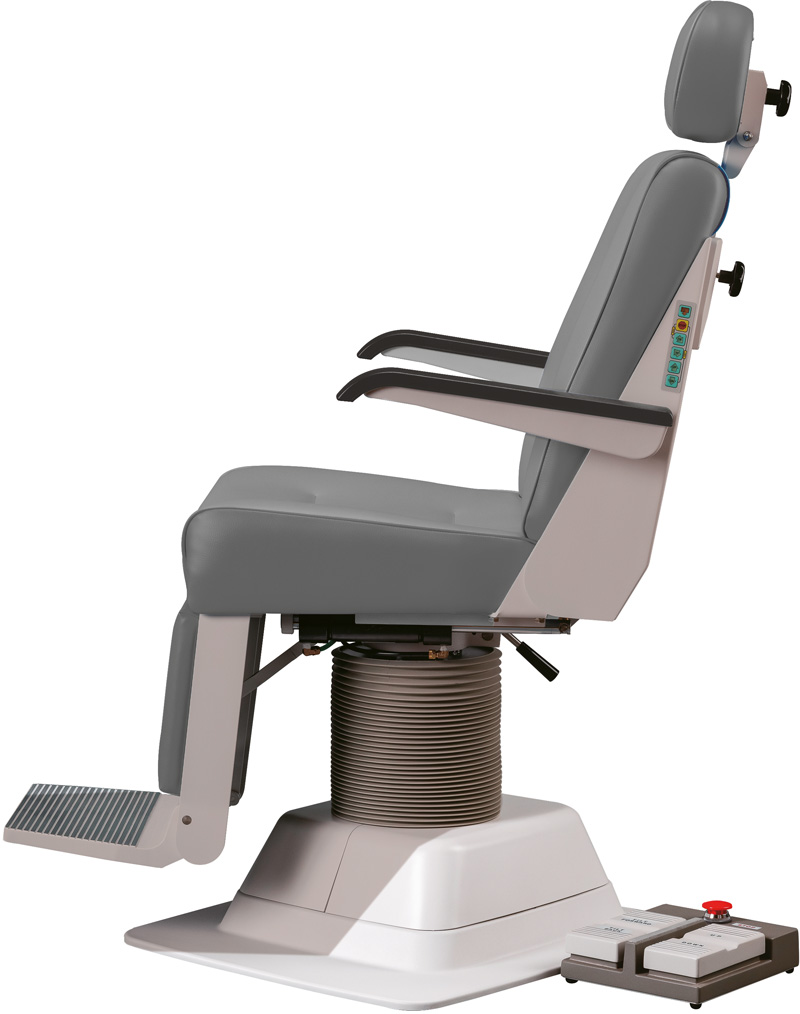

UN-21 Full Reclining Chair

In combination with an operating microscope, the chair can be served as a bed for examination and treatment.
(An optional OM Arm is required to install an operating microscope.)

An AUTO-RETURN switch automatically returns the chair to its original position.

A standard memory mechanism can preselect one desirable tilt angle.

A standard foot switch controls lifting/lowering, back/forward tilting, and stopping positions of the chair.

The environmentally friendly leather is used for the compliance with RoHS Directive.

Leather fabric physical properties:

  • Alcohol resistance: Soaked in 70% ethanol water solution for 24 hours
  • Hypochlorous acid resistance: Soaked in 0.5% hypochlorous acid for 24 hours
  • Flameproof: Conforms to the flameproof product performance test standards of the Japan Fire
  • Retardant Association
  • Antibacterial, light resistance, and durability conform to JIS (Japanese Industrial Standards)

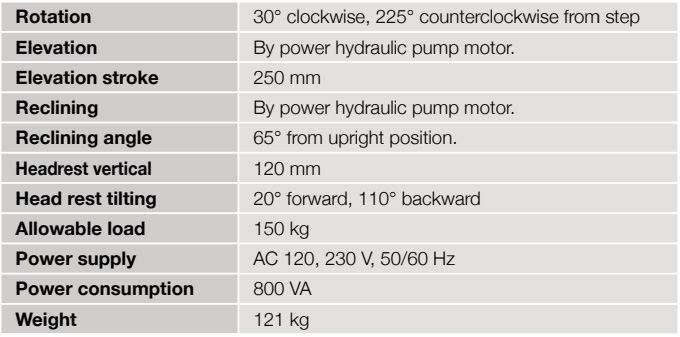

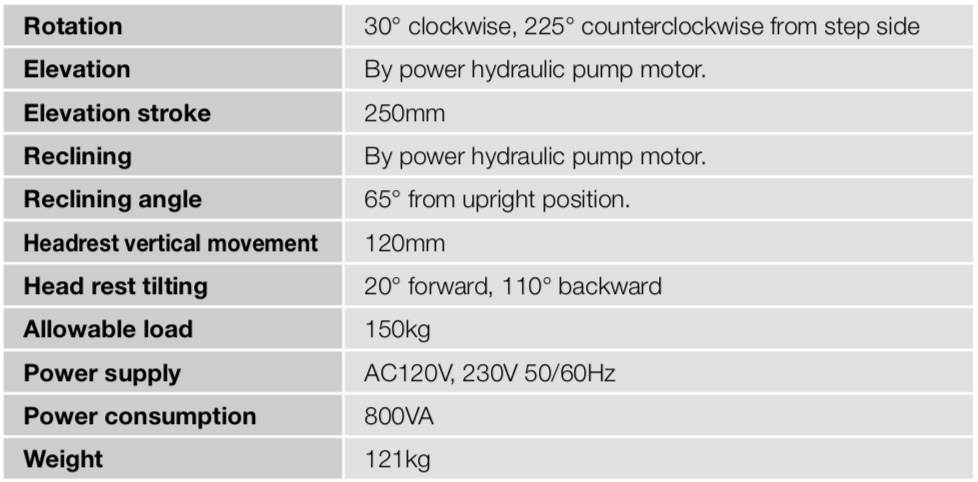

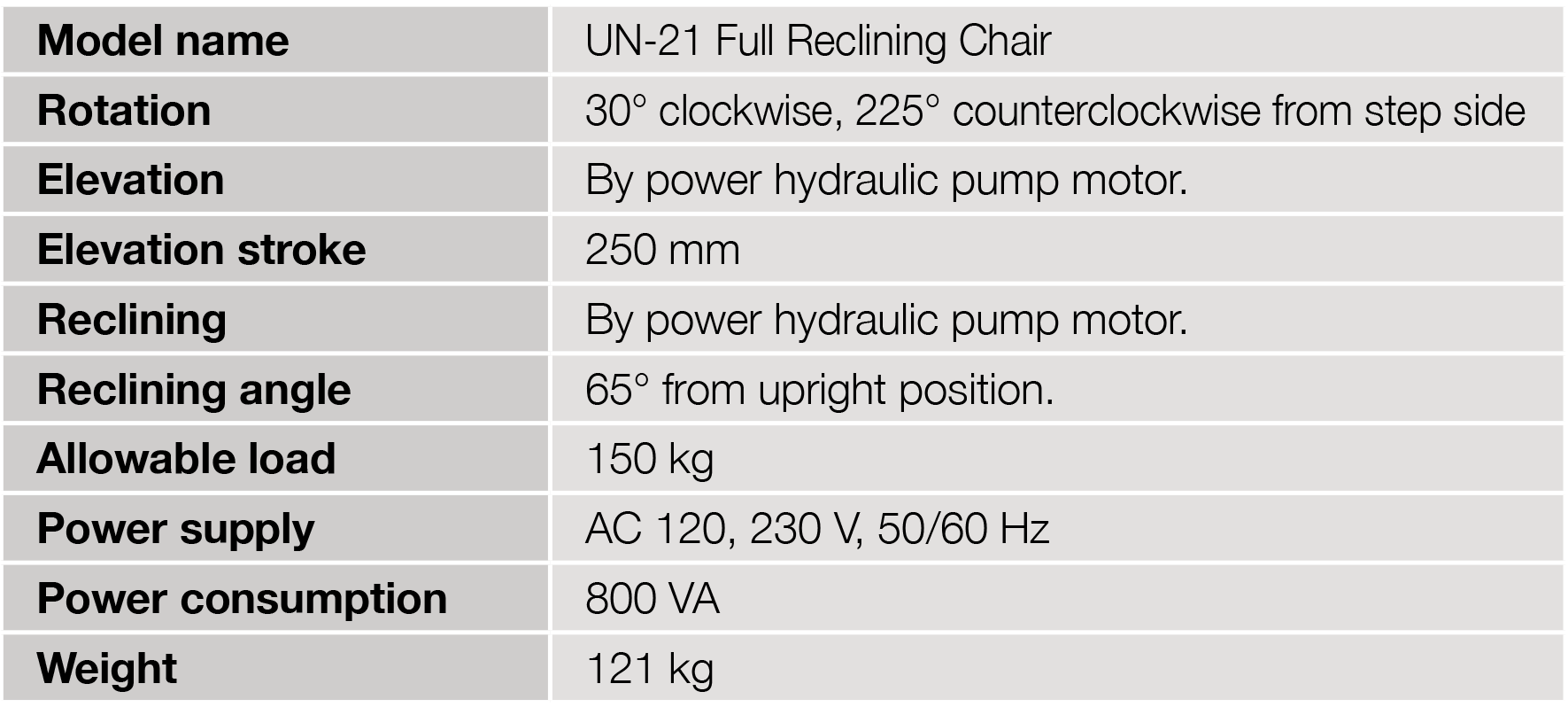

Major Specifications

Rotation 30° clockwise, 225° counterclockwise from step side
Elevation By power hydraulic pump motor.
Elevation Stroke 250mm
Reclining By power hydraulic pump motor.
Reclining Angle 65° from upright position.
Headrest Vertical Movement 120mm
Head rest Tilting 20° forward, 110° backward
Allowable Load 150kg
Power Supply AC120V, 230V 50/60Hz
Power Consumption 800VA
Weight 121kg

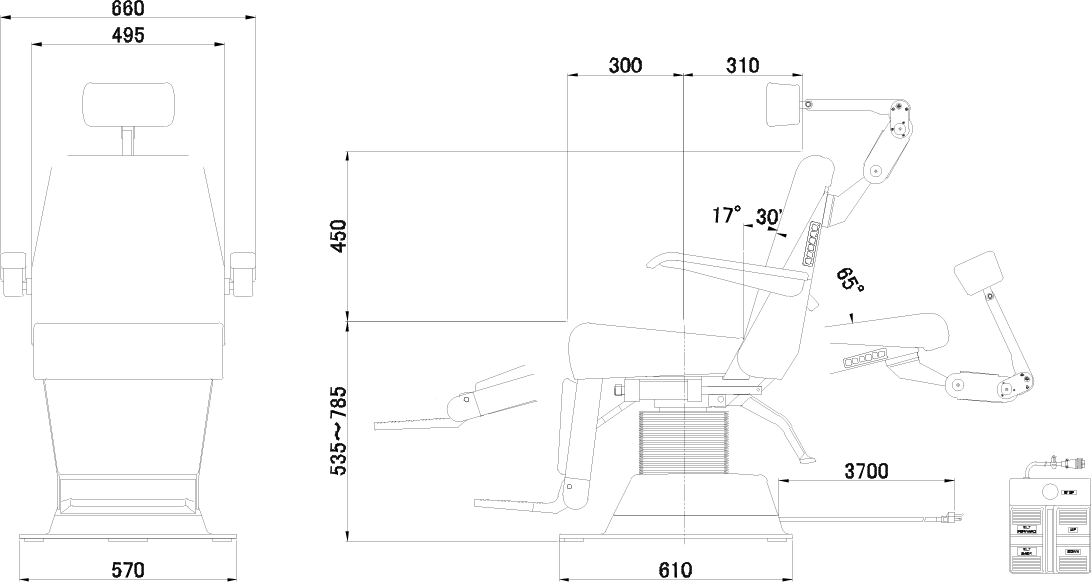

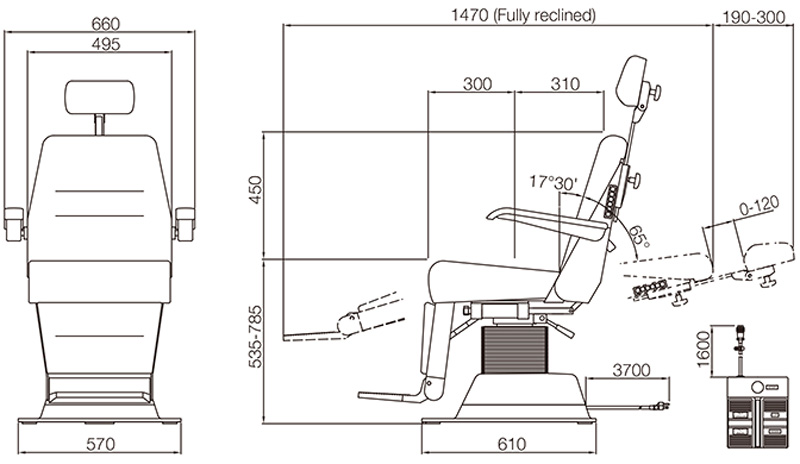

Dimensions

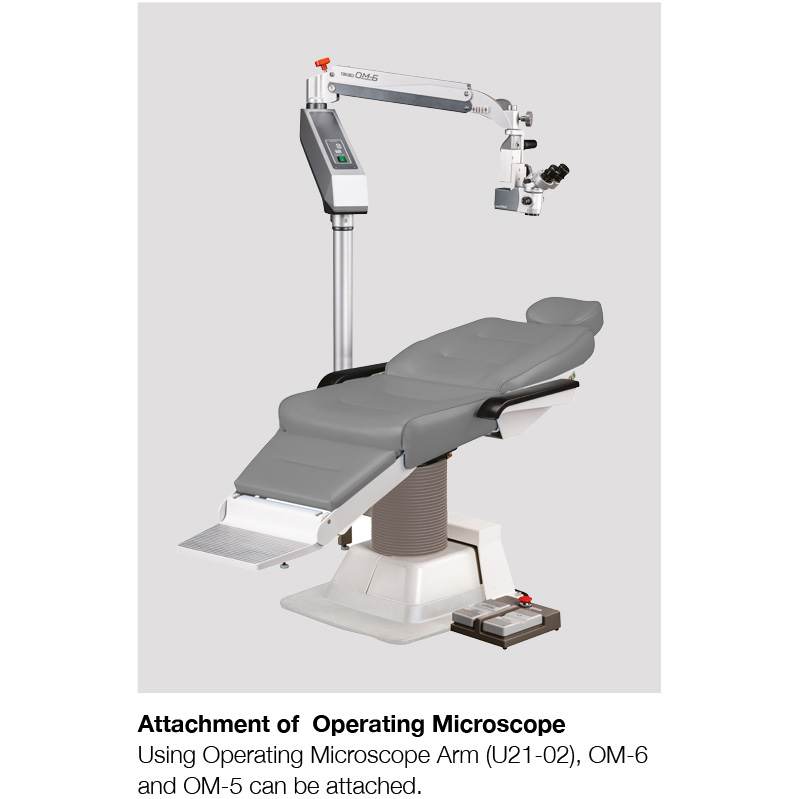

Optional Components
