Breath shields have been used as a physical barrier between the ophthalmologist and the patients. During the Covid-19 outbreak, TAKAGI has developed a new bigger breath shield S06-71 that provides a larger covering area than the standard size breath shield, aiming for the reduction of droplet transmission and respiratory infections.
Attachable models: 700GL, 700GL NSW, 30GL, 4ZL, 2ZL, 300XL
Fits very tight around the TAKAGI Slit Lamps, minimising the space for breath going through to the other side.
The diameter of S06-71 mounting port: φ70
The diameter of the eyepiece tube connection part of TAKAGI Slit Lamps :φ69

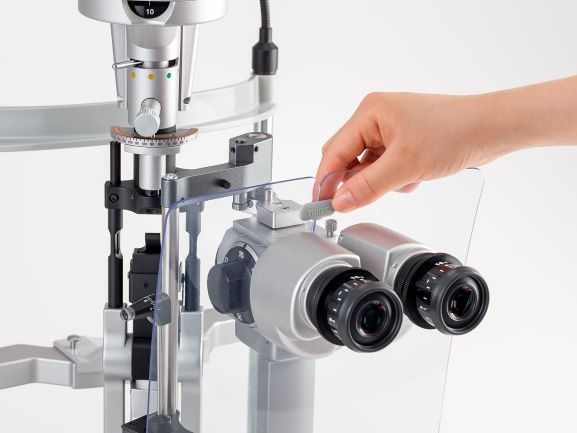

Can be fitted in seconds.

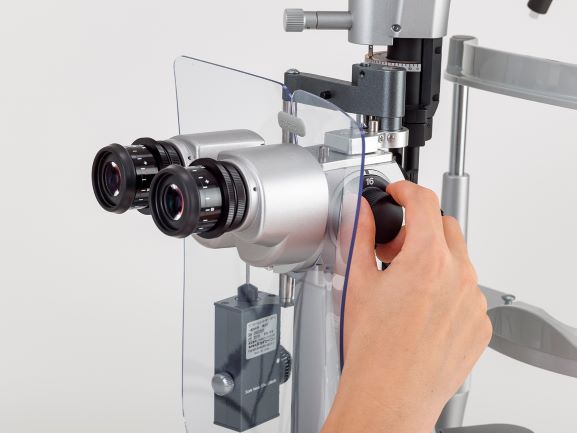

It does not get in the way when using the attached slit lamp.
| Material | RoHS2-compliant polyvinyl chloride | ||||
| Size | 290 x 220 mm | ||||
| Weight | 150g | ||||
| Attachable Models | 700GL, 700GL NSW, 30GL, 4ZL, 2ZL, 300XL | ||||
5x step Galilean type, converging optics, upper LED illumination, and built-in background illumination
5x step Galilean type, converging optics, upper LED illumination, built in background illumination and wide angle fundus observation
2x step Greenough type with converging optics and upper LED illumination
5x step Galilean type, converging optics, lower LED illumination, and built in background illumination
3x step Galilean type with converging optics and lower LED illumination
3x step Galilean type with converging optics and lower LED illumination
R-Type Compact Applanation Tonometer with option to be permanently fixed to slit lamp with observation from the left eye
Z-type applanation tonometer exclusively for use with 2ZL/4ZL
