Features

Compact design optimized for out-patient environments

Simple, highly functional design

The compact design saves space, enabling use even in restricted out-patient environments. Furthermore, this model can be connected to either the left or the right side of the UN-21 Full Reclining Chair, making operations even more efficient. When not in use, it can be folded to a compact size for storage.

If the base is replaced with a flat base (O01-19), it is possible to install the microscope flush to the wall, and the base can be placed under a bed, enabling safe and comfortable procedures and operations even in confined spaces.

3D observations enabled by wide ﬁeld of view and deep depth of focus

The optimized optical design and high-quality optical system provide an environment where tiny tissues and structures can be observed clearly. This performance is delivered even in out-patient procedures.

High-luminance and long-life LED light source

The illumination system uses high-luminance LED light to focus on contrast and color reproduction. The service life is approximately 40,000 hours, minimizing the need for bulb replacements and ensuring stable illumination.

_{*LED operating life is defined as a state when light intensity drops to 70%. The operating life of the LED used in OM-6 is approximately 40,000 hours, although this is not guaranteed.}

Eyepieces with a wide field of view

Ensures brightness and ease of observation to support precise surgical operations. The three-step magnification, wide-field eyepieces provide a bright and wide field of view of 48 mm / 28.8 mm / 18 mm in diameter, helping to facilitate out-patient procedures.

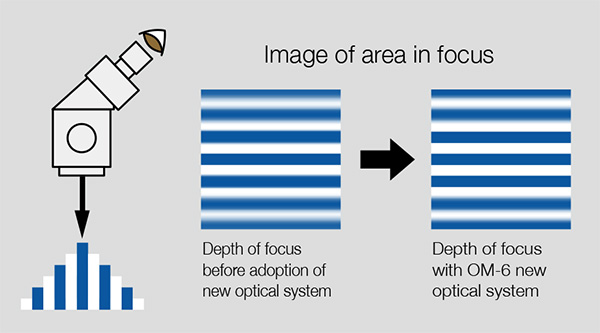

Deep depth of focus

The optimized optical design enables the microscope to focus over a wide area, eliminating the need for fine adjustments. This allows 3D observations, supporting precise procedures.

Comfortable operations with natural posture

Designed for easy operation

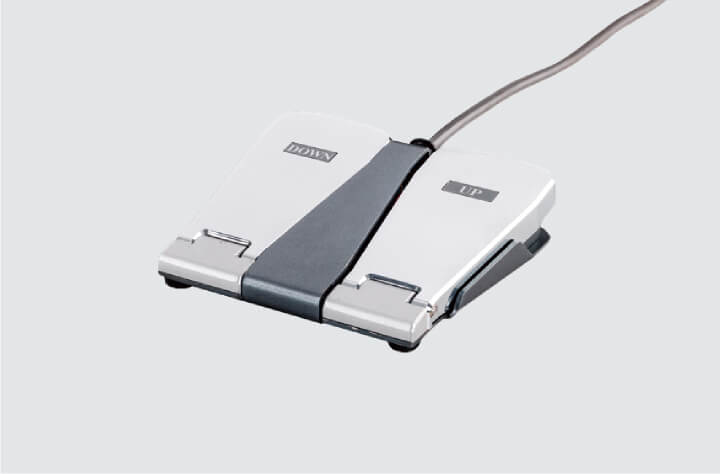

A tilted, easy-to-depress foot controller is used to enhance operator comfort. High water and dust resistance (IPX6) allows use with peace of mind even in environments subject to splashing fluids.

Ergonomic design

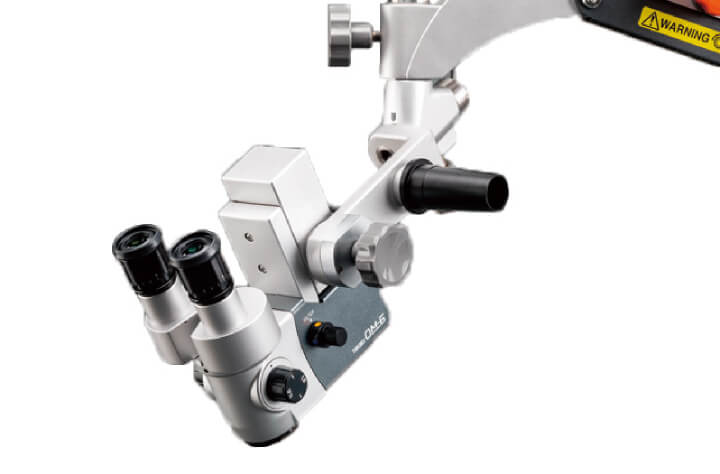

The 45-degree inclined binocular tubes allow the surgeon to keep a comfortable posture and maintain concentration for a long time.

▲
Back to Tab Menu

Performance

Space-Saving Design for Enhanced Comfort

The various options support flexible operation, enabling safe and comfortable procedures or surgeries even in confined spaces.

The arm’s inclined shape ensures sufficient clearance to avoid contact with the patient’s body. This provides comfort and peace of mind during procedures or surgeries.

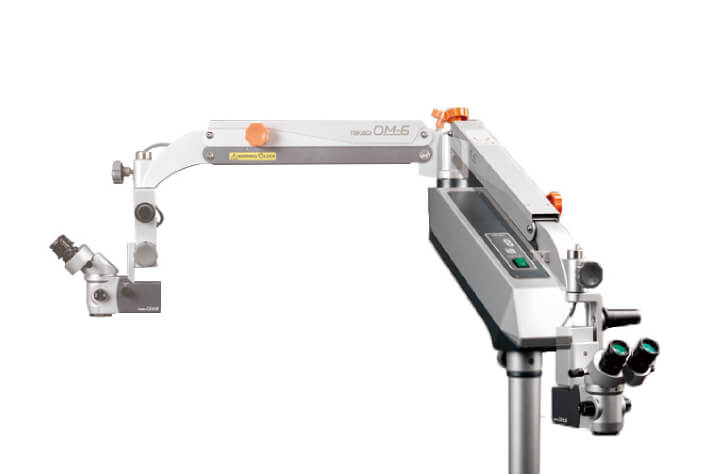

The arm can also be compactly folded, making it easy to move or store the equipment. The design allows for flexible installation and operation even in limited space.

A wide variety of space-saving options are available to suit your specific usage environment.

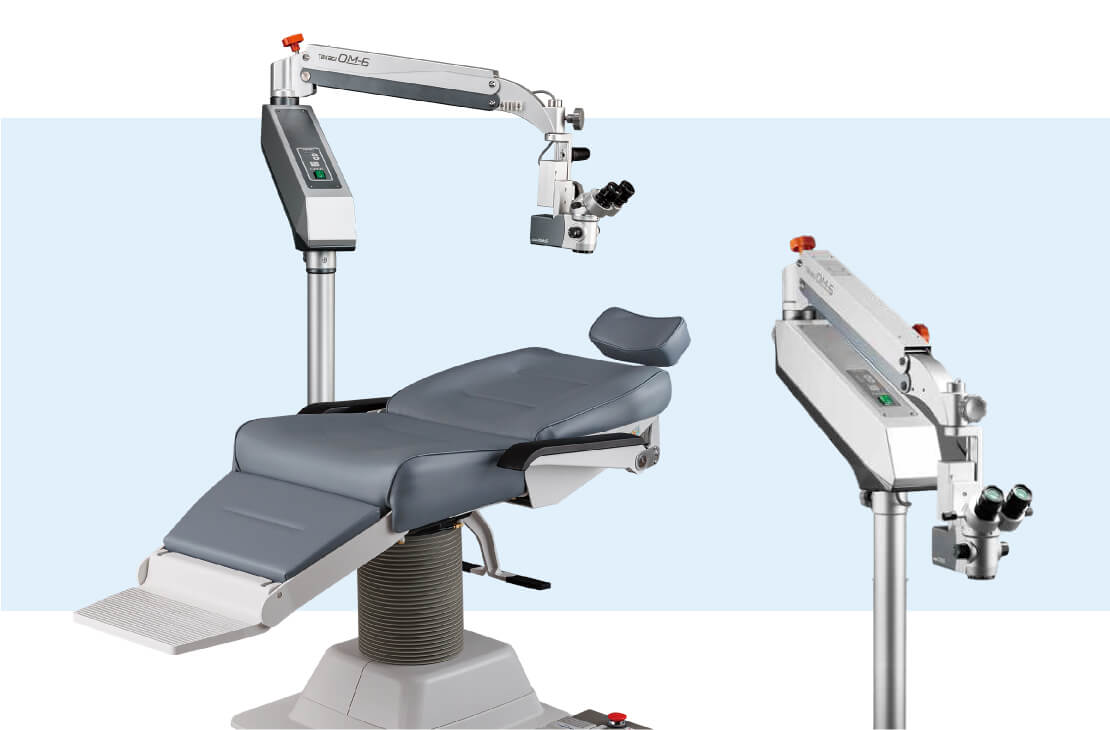

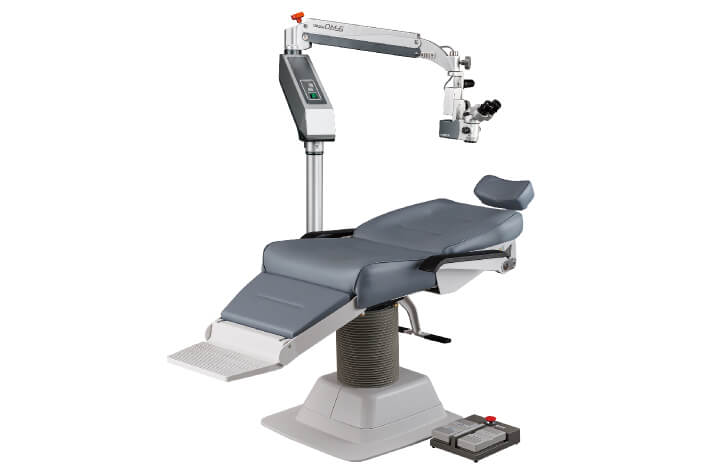

The Connecting Arm (U21-02) can be used to link the microscope with the Full Reclining Chair (UN-21) for enabling usage in confined spaces. The Connecting Arm can be mounted on either the left or right side of the UN-21, allowing for flexible installation according to layout and workflow.

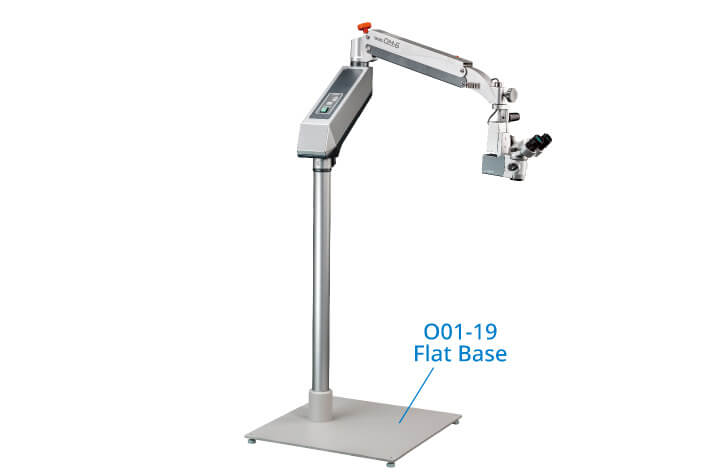

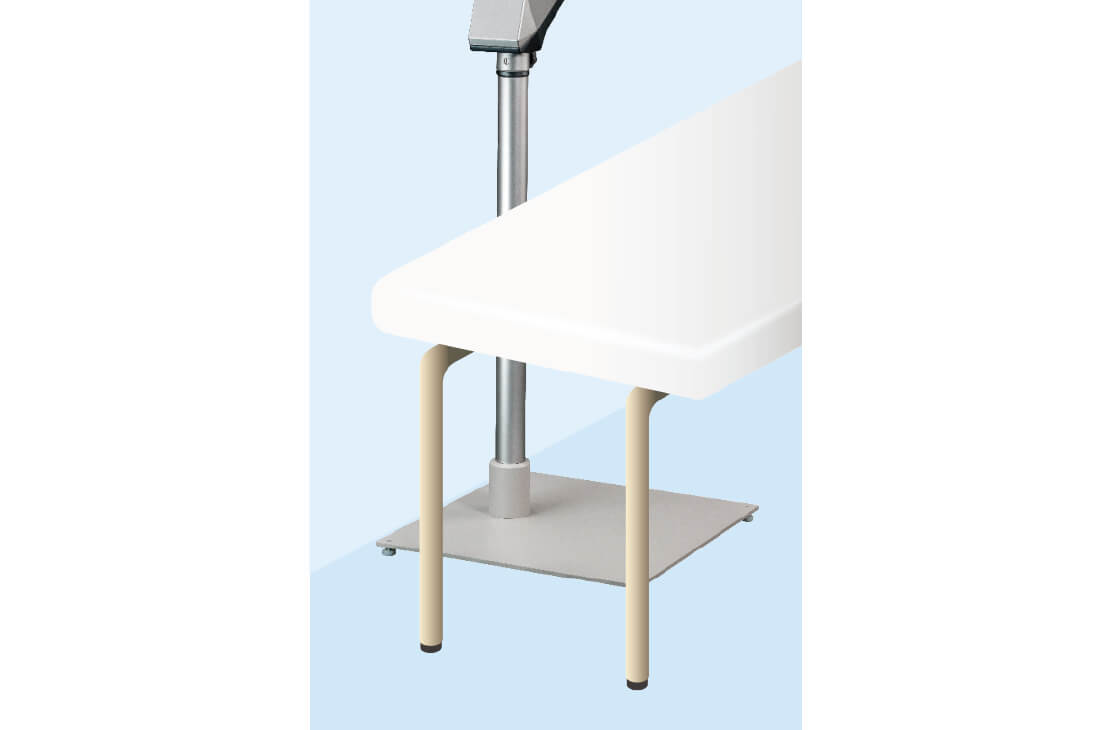

Replacing the base with the Flat Base (O01-19) allows installation along a wall, and placing the base unit under the bed ensures safe and comfortable procedures or surgeries even in tight spaces.

Improved Observation Accuracy

A wide field of view, deep depth of focus, and versatile illumination support stable observation and high-precision visibility during procedures and surgeries.

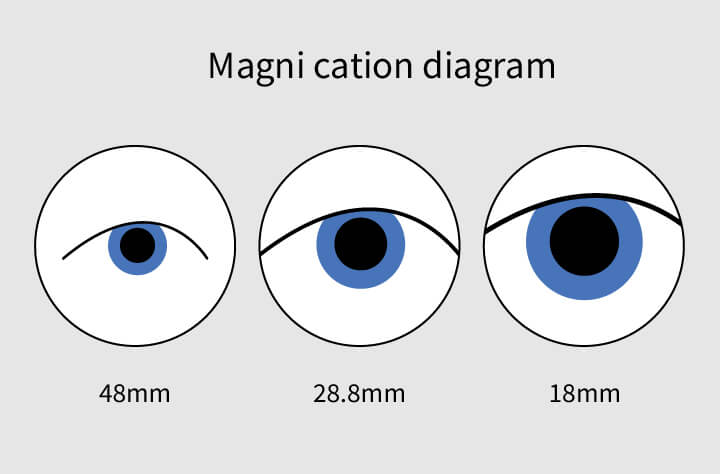

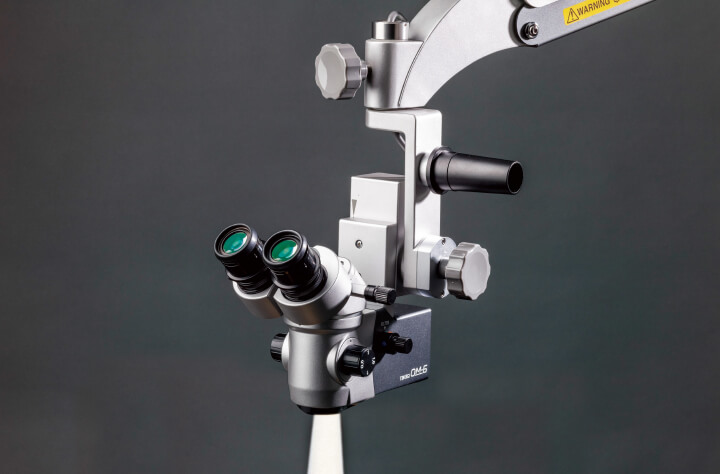

The combination of a three-step magnification system and wide-field eyepieces allows selection of actual fields of view with diameters of 48 mm, 28.8 mm, and 18 mm. The design makes it easy to secure a wide field of view, making it ideal for procedures or surgeries where comprehensive awareness of the entire visual field is required.

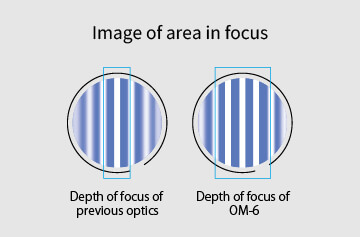

With an objective lens of F = 200 mm, the deep depth of focus makes it easy to keep the entire visual field in focus during procedures or surgeries. This allows continued observation with minimal focus deviation, even when the target area moves slightly.

The illumination system uses high-intensity LED for direct lighting. While ensuring the visibility needed for observation, it also comes standard with a heat protection filter and blue correction filter, reducing potential effects of LED heat and blue light on the patient’s eyes.

Furthermore, blue and green filters are also included, enabling wavelengths of light tailored to the observation purpose.

Improved Efficiency for Procedures and Surgeries

The intuitively-operated foot controller and a variety of options support efficient procedures and surgeries, as well as information sharing, for creating a smooth working environment.

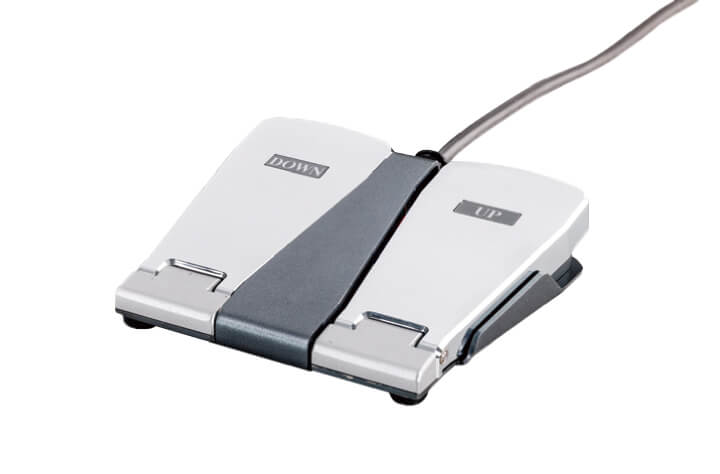

The foot controller is optimized for frequent focus adjustment, enabling intuitive operation even during procedures or surgeries. Its angled design makes it easy to press and allows smooth control.

It also features waterproof and dustproof performance (IPX6), ensuring safe use even in environments where liquids may splash.

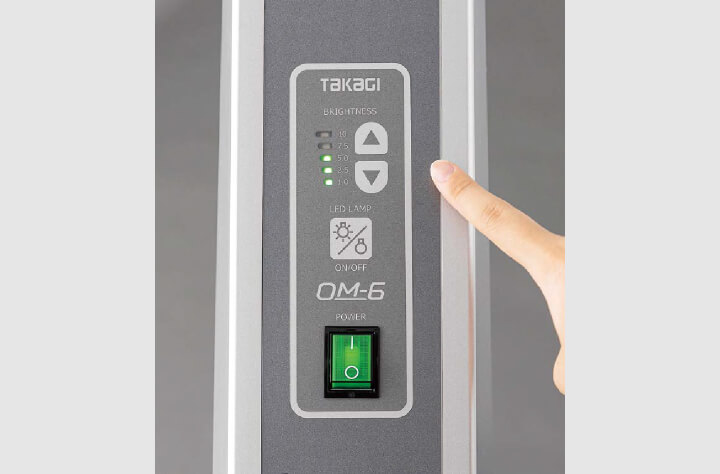

Light intensity can be easily adjusted from the control panel, allowing smooth lighting settings based on the situation.

_{*Image with Straight Binocular Tube S01-14 and Inclined Coupling O07-17 attached.}

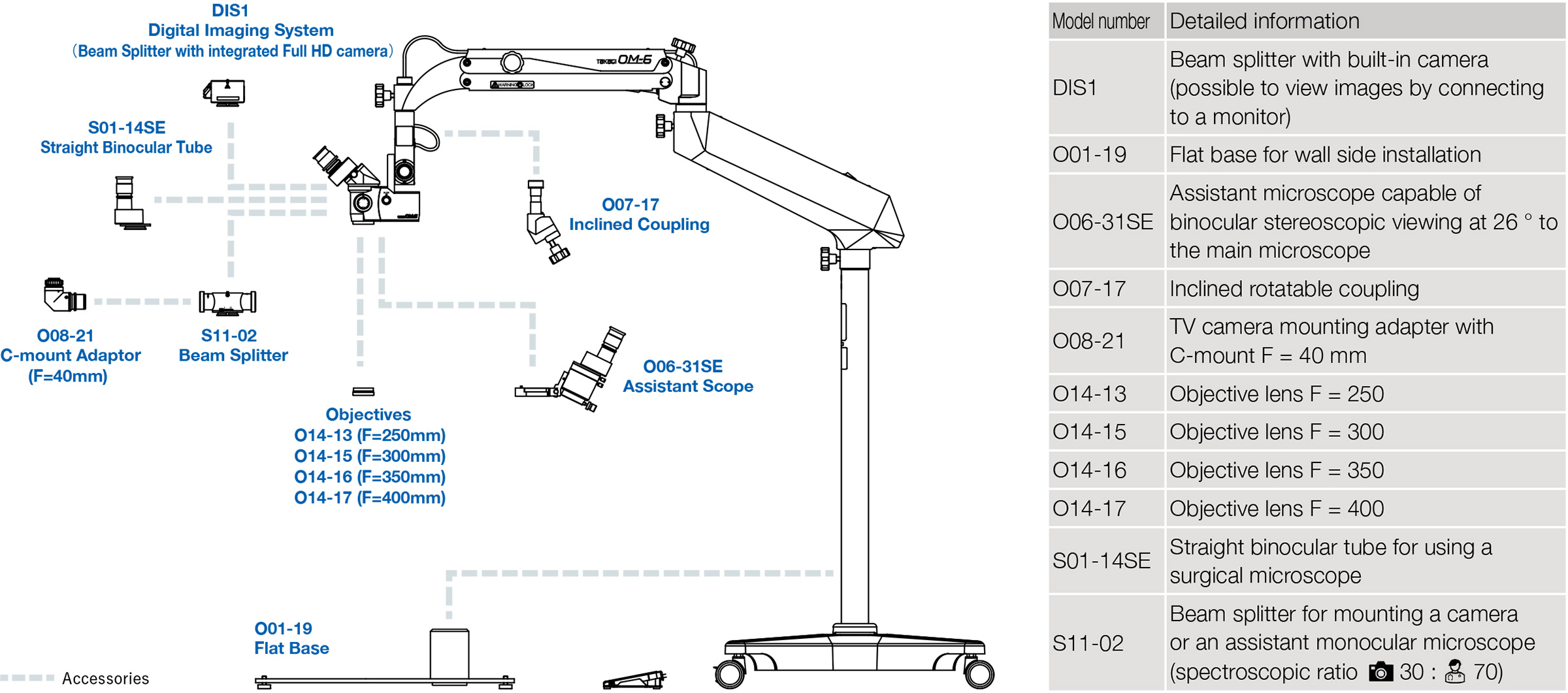

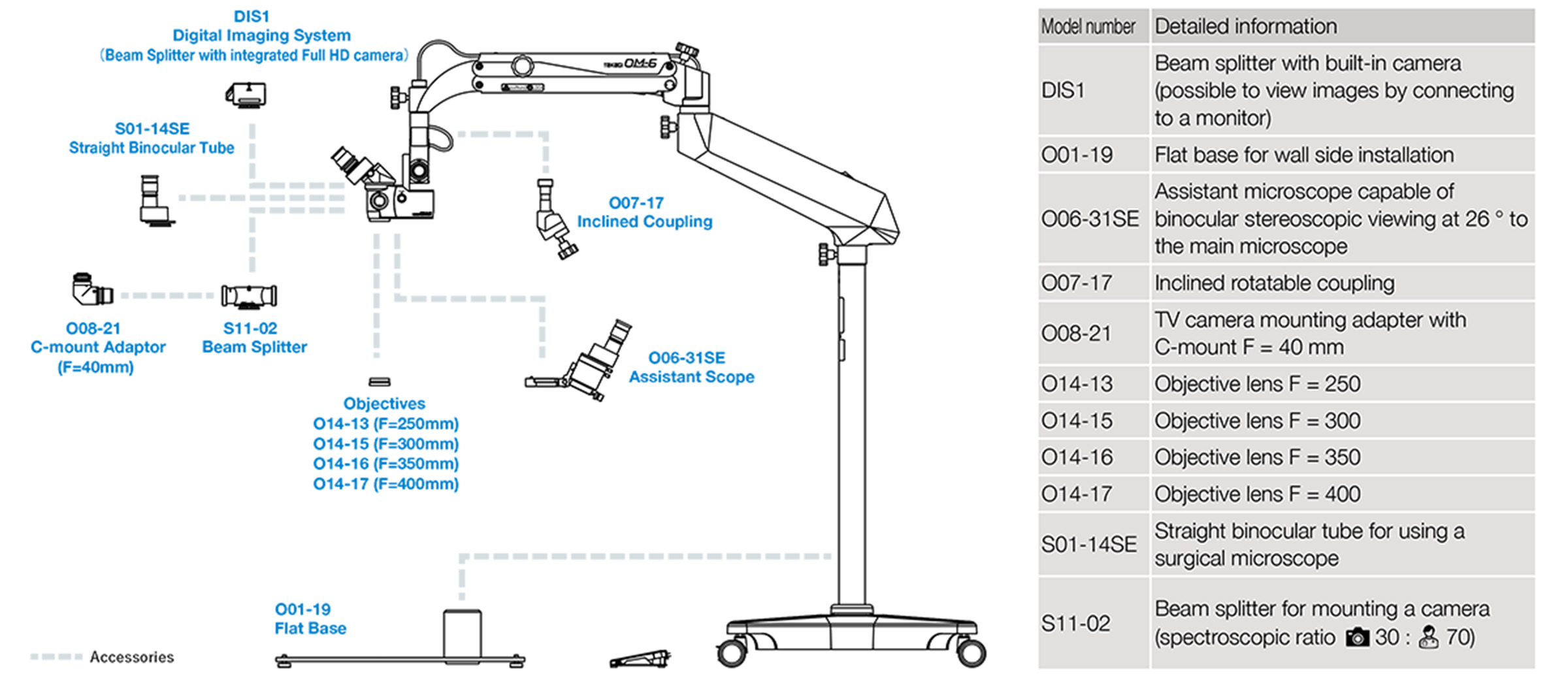

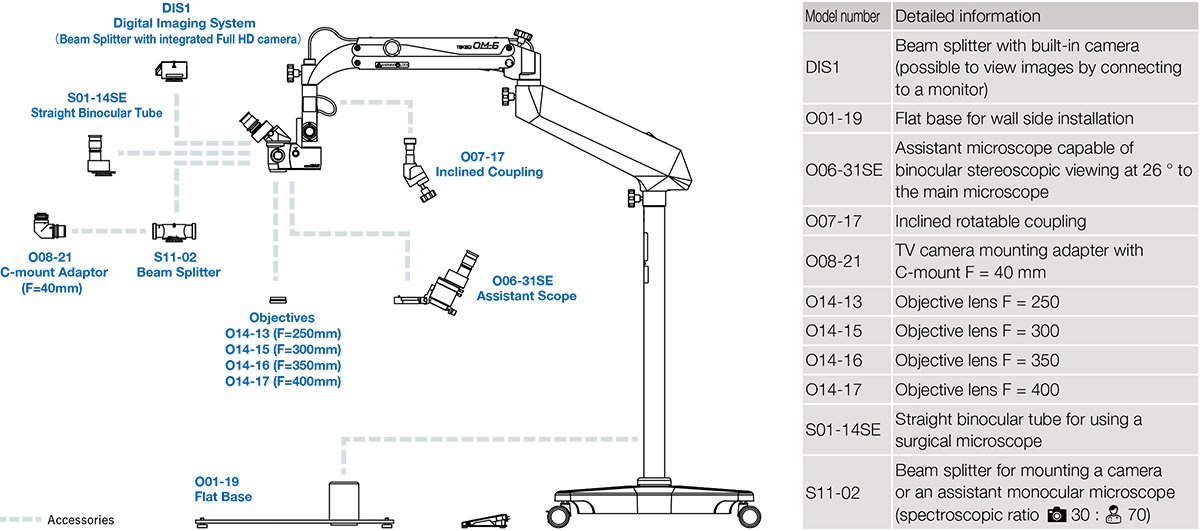

To support procedure and surgery recording and information sharing among staff, optional accessories such as a TV Camera Adapter (O08-21) and Beam Splitter (O11-03) are available.

Also, combining the Straight Binocular Tube (S01-14SE) with the Inclined Coupling (O07-17) allows adjustment of the microscope’s viewing angle, providing greater freedom in procedure posture. In this way, the design supports creation of an optimal environment tailored for your specific situation.

▲
